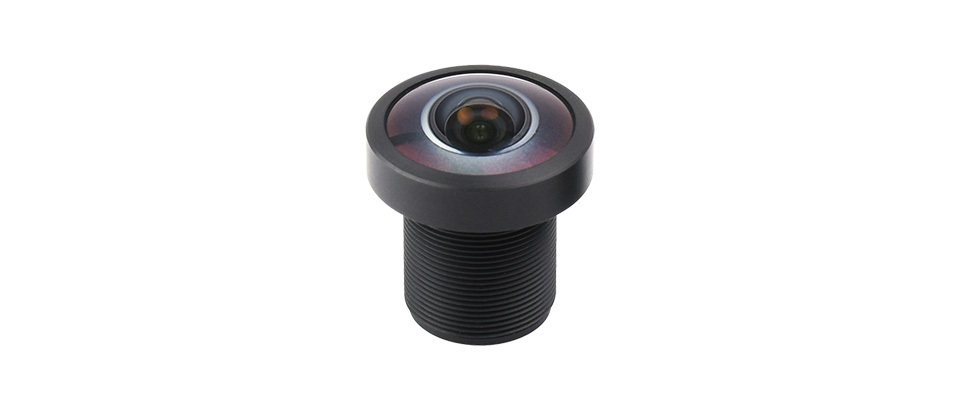

- 配置清单
WS1842714
M12 高分辨率镜头
14MP | 184.6° FOV | 超广角
WS1842714 是一款 M12 镜头，1400 万高清分辨率，184.6° 超广角
适用于 Raspberry Pi HQ Camera M12 等 M12 摄像头底板
*本镜头不配 M12 底座，有需要请咨询客服
M12 镜头参数对比
| 型号 |  WS1842714 |
 WS1053516 |
 WS1132712 |
 WS1603212 |
 WS0698012 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 分辨率 | 14M | 16M | 12M | ||||||||||||
| 焦距 (EFL) | 2.72mm | 3.56mm | 2.7mm | 3.2mm | 8mm | ||||||||||
| 光圈 (F/NO) | 2.5 | 2.5 | 2.8 | 2.0 | 1.8 | ||||||||||
| 后焦距 (BFL) | 3.06mm | 5.92mm | 4.97mm | 6.14mm | 10.02mm | ||||||||||
| 畸变 | <-21% | <-17.6% | <-1.5% | <-64% | <-15.68% | ||||||||||
| 螺纹尺寸 | M12*P0.5 | ||||||||||||||
| 工作温度 | -30 ~ +75°C | -30 ~ +70°C | -40 ~ +105°C | -20 ~ +60°C | |||||||||||
| 材质 | 8G+IR | 4G3P+IR | 5G2P+IR | 8G+IR | |||||||||||
| 质量 | 9g | 7g | 6g | 28g | 12g | ||||||||||
| 视场角 (FOV) | 像面 尺寸 |
1/2.3" | 1/2.3" | 1/2.5" | 1/2.3" | 1/2.5" | 1/2.8" | 1/1.7" | 1/1.8" | 1/2.8" | 1/1.8" | 1/2.5" | 1/3.0" | ||
| 对角 | 184.6° | 105.0° | 98.2° | 113.0° | 108.0° | 101.0° | 160.0° | 153.6° | 136.0° | 69.5° | 50.7° | 43.0° | |||
| 水平 | 140.0° | 88.0° | 87.7° | 100.0° | 97.0° | 92.8° | 131.0° | 129.0° | 113.5° | 55.6° | 44.4° | 34.7° | |||
| 垂直 | 102.6° | 70.0° | 53.3° | 82.7° | 67.0° | 60.3° | 99.0° | 88.0° | 83.0° | 40.3° | 32.6° | 26.4° | |||

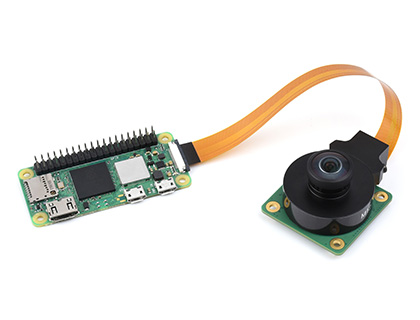

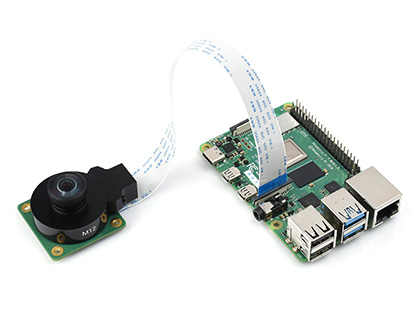

接入树莓派使用

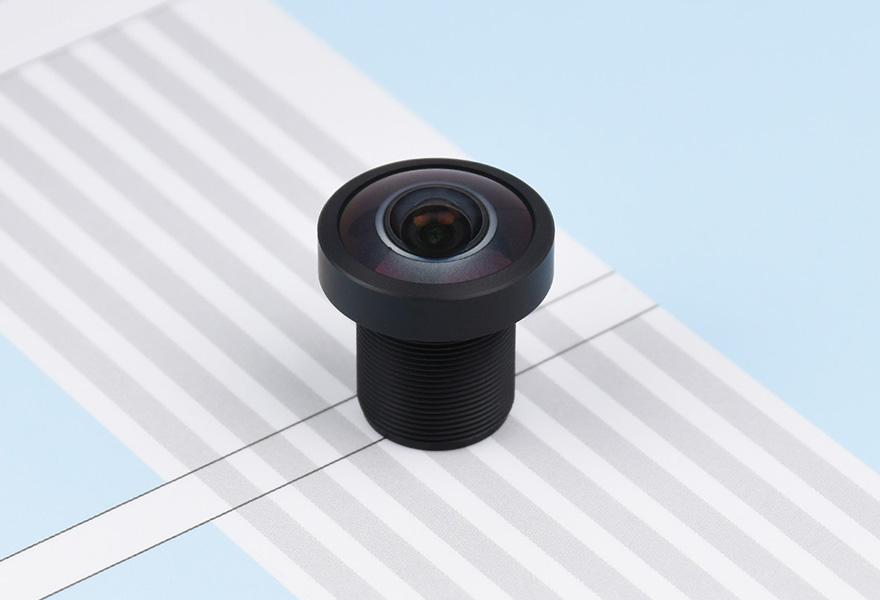

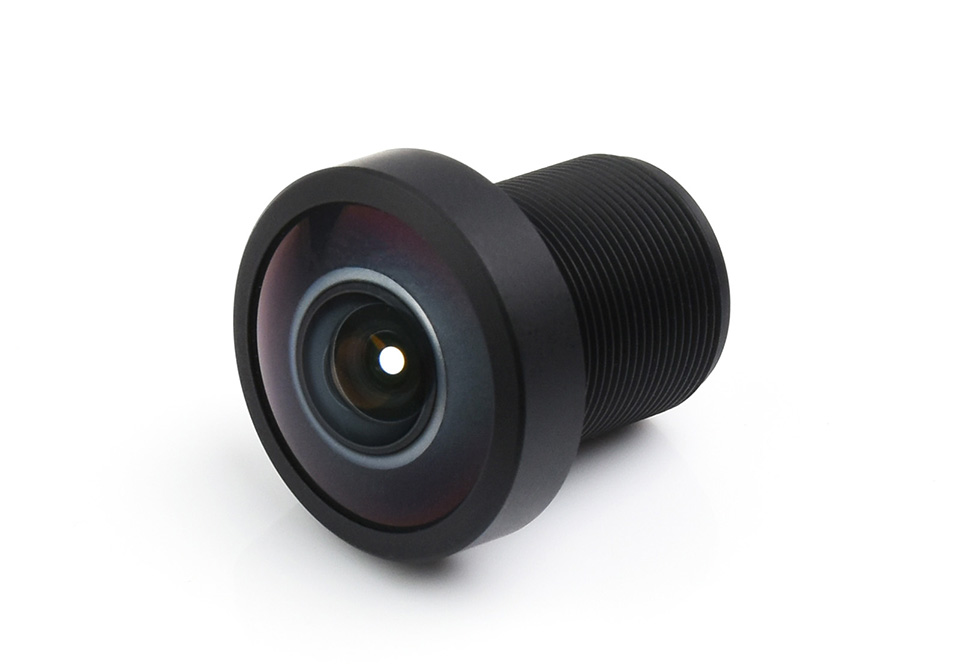

产品展示
产品尺寸
