技术资料—— TDA7294 PDF技术资料

TDA7294 概述

The TDA7294 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability TDA7294 is able to supply the highest power into both 4W and 8W loads even in presence of poor supply regulation, with high Supply Voltage Rejection.

The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.

TDA7294 参数
TDA7294 主要参数
工作电压 (Vcc) 20-80 V
输出通道 typ 1
TDA7294 其他特性
负载 typ -
待机功能 Yes
待机电流 typ 1
静音 Yes

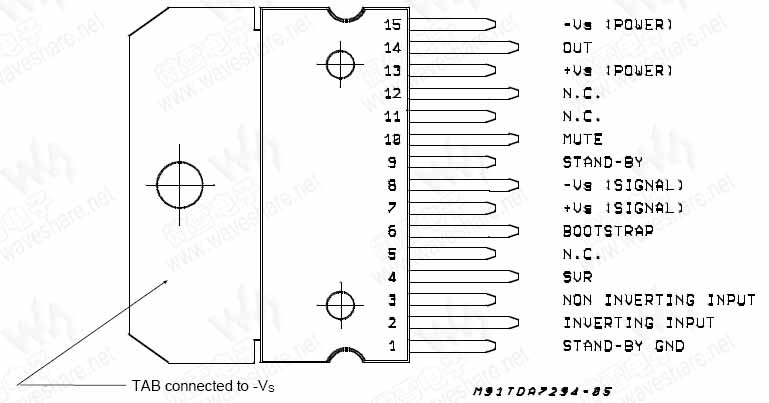

TDA7294 封装与引脚
