RTL8111C

芯片信息

型号 封装 在线定购
RTL8111C-VC-GR(查看) QFN64

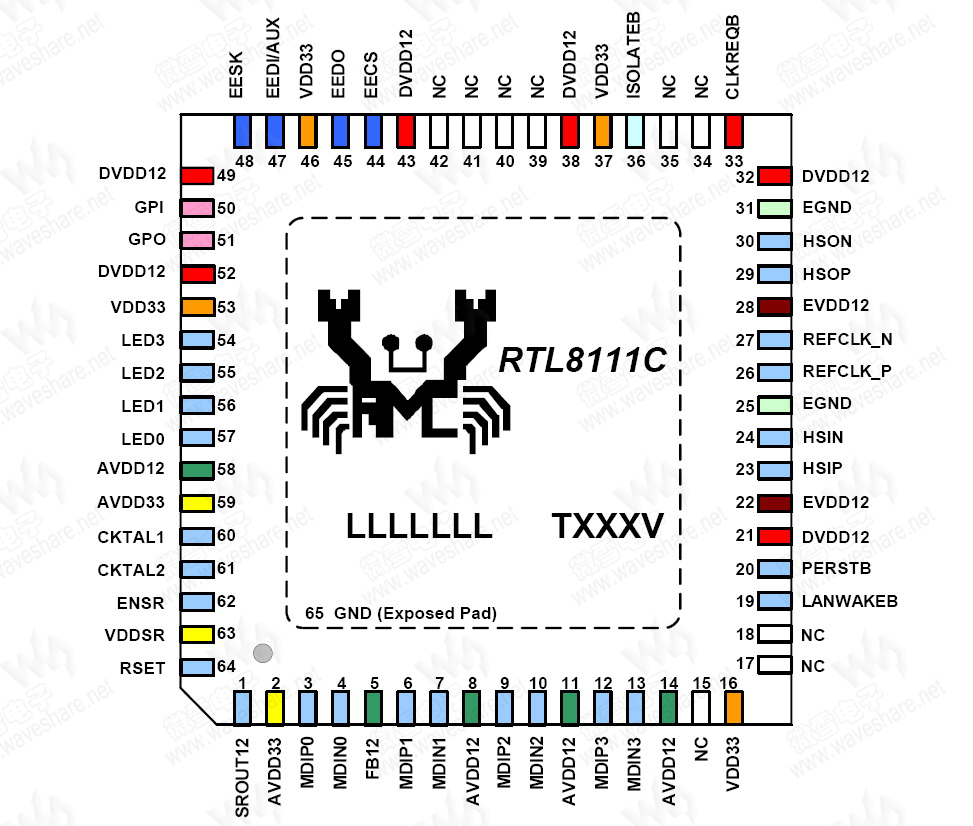

引脚布局

(点击图片看大图)
技术资料—— RTL8111C PDF技术资料

RTL8111C 概述

The Realtek RTL8111C Gigabit Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111C offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

The RTL8111C is suitable for multiple market segments and emerging applications, such as desktop, mobile, workstation, server, communications platforms, and embedded applications.

RTL8111C 特性


  • Integrated 10/100/1000 transceiver
  • Auto-Negotiation with Next Page capability
  • RTL8111C supports PCI Express™ 1.1
  • Supports pair swap/polarity/skew correction
  • Crossover Detection & & Auto-Correction
  • Wake-on-LAN and remote wake-up support
  • Microsoft® NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send and Giant send) support
  • RTL8111C supports Full Duplex flow control (IEEE 802.3x)
  • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

RTL8111C 应用


  • Supports IEEE 802.1P Layer 2 Priority Encoding
  • Supports IEEE 802.1Q VLAN tagging
  • Serial EEPROM
  • Transmit/Receive on-chip buffer support
  • Supports power down/link down power saving
  • Supports PCI MSI (Message Signaled Interrupt) and MSI-X
  • RTL8111C supports Receive-Side Scaling (RSS)
  • 64-pin QFN package (Green package)
  • Embeds an adaptive equalizer in PCI express PHY (PCB traces to reach 40 inches)

  • PCI Express™ Gigabit Ethernet on Motherboard, Notebook, or Embedded system
