The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features.

The ST Zio connector, which is an extension of Arduino™ Uno V3, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-144 board does not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as a direct access to the ARM ® mbed™online resources at

NUCLEO-F767ZI 是ST公司推出的一款针对STM32F7系列设计的Cortex-M7 Nucleo-144开发板,支持mbed,兼容Arduino、还带有ST Zio和 ST Morpho 扩展接口,可连接微控制器的所有周边外设。

开发板基于STM32F767ZI设计,开发板还集成了ST-LINK/V2-1仿真下载器(但仅对外提供SWD接口),免除您另外采购仿真器或下载器的麻烦。并且具备Arduino接口,可接入 Arduino 巨大生态系统的各种 Shield 扩展板,让您能够轻松快速增加特殊功能。


  • STM32 microcontroller in LQFP144 package
  • Two types of extension resources:
    • ST Zio connector including: support for Arduino™ Uno V3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals
    • ST morpho extension pin header footprints for full access to all STM32 I/Os
  • ARM ®  mbed™ -enabled (see
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
    • Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
    • USB re-enumeration capability. Three different interfaces supported on USB: virtual COM port, mass storage, debug port
  • Flexible board power supply:
    • 5 V from ST-LINK/V2-1 USB VBUS
    • External power sources: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector
  • USB OTG or full-speed device with Micro-AB connector (depending on STM32 support)
  • IEEE-802.3-2002 compliant Ethernet connector (depending on STM32 support)
  • Three user LEDs
  • Two push-buttons: USER and RESET
  • LSE crystal:
    • 32.768 KHz crystal oscillator
  • Comprehensive free software HAL library including a variety of software examples
  • Support of wide choice of Integrated Development Environments (IDEs) including IAR™ , Keil ®  , GCC-based IDEs, ARM ®  mbed™

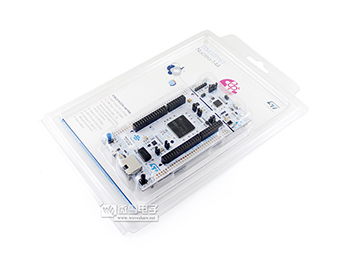

NUCLEO-F767ZI 带包装正面图

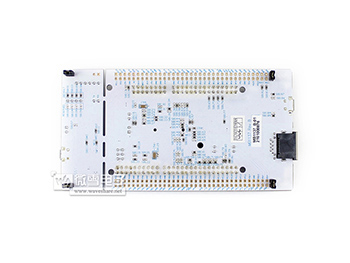

NUCLEO-F767ZI 带包装反面图

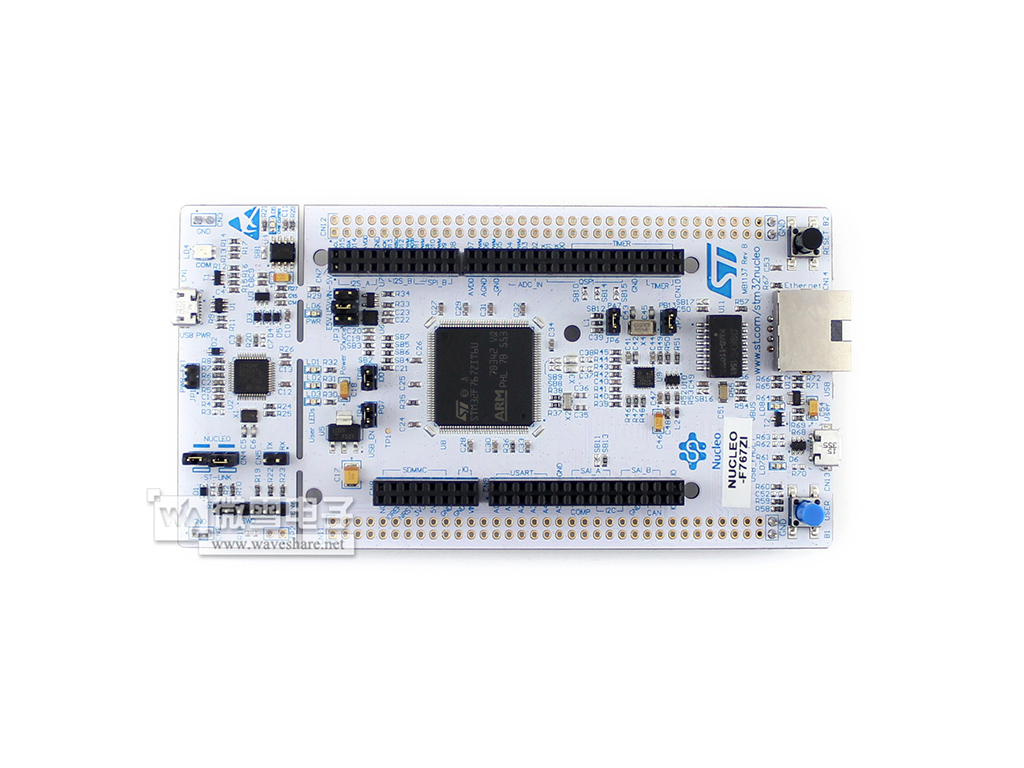

NUCLEO-F767ZI 开发板 图一

NUCLEO-F767ZI 开发板 图二

NUCLEO-F767ZI 开发板 图三

NUCLEO-F767ZI 开发板 图四



NUCLEO-F767ZI 目前没有配送光盘。


特别注意: 本开发板为原装标配产品,没有配送USB (micro)连接线,如需USB (micro)连接线请另行采购。

  1. NUCLEO-F767ZI x 1
