NUCLEO-F446ZE STM32F446ZET6开发板

板载ST-LINK/V2,支持mbed功能,Arduino扩展

已停产

型号
NUCLEO-F446ZE
SKU
11498
  • 产品详情
  • 产品资料
  • 配置清单

产品简介

The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features.

The ST Zio connector, which is an extension of Arduino™ Uno, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-144 board does not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as a direct access to the ARM®mbed™online resources.

NUCLEO-F446ZE 是ST公司推出的一款针对STM32F4系列设计的Cortex-M4 Nucleo-144开发板,支持mbed,兼容Arduino、还带有ST Zio和 ST Morpho 扩展接口,可连接微控制器的所有周边外设。

开发板基于STM32F446ZET6设计,开发板还集成了ST-LINK/V2-1仿真下载器(但仅对外提供SWD接口),免除您另外采购仿真器或下载器的麻烦。并且具备Arduino接口,可接入 Arduino 巨大生态系统的各种 Shield 扩展板,让您能够轻松快速增加特殊功能。

ST提供丰富的示例程序,让您更快速的入门STM32F4单片机。一起来释放您的创造力吧!

【特点】
  • STM32 microcontroller in LQFP144 package
  • Two types of extension resources:
    • ST Zio connector including: support for Arduino™Uno Revision 3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals (A6 to A8, D16 to D72)
    • ST morpho extension pin header footprints for full access to all STM32 I/Os
  • ARM®mbed™ -enabled (see http://mbed.org), planned for the second quarter of 2016
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
    • Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
    • USB re-enumeration capability. Three different interfaces supported on USB: virtual com port, mass storage, debug port
  • Flexible board power supply:
    • 5V from ST-LINK/V2-1 USB VBUS
    • External power sources: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector
  • USB OTG or device full speed with Micro-AB connector (depending on STM32 support)
  • IEEE-802.3-2002 compliant Ethernet connector (depending on STM32 support)
  • Three user LEDs
  • Two push buttons: USER and RESET
  • LSE crystal:
    • 32.768KHz crystal oscillator
  • Comprehensive free software HAL library including a variety of software examples
  • Supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs, ARM®mbed™
【资源简介图】

产品图片


NUCLEO-F446ZE 带包装正面图

NUCLEO-F446ZE 带包装反面图

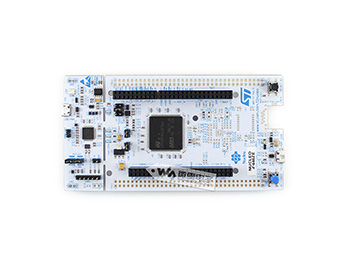

NUCLEO-F446ZE 开发板 图一

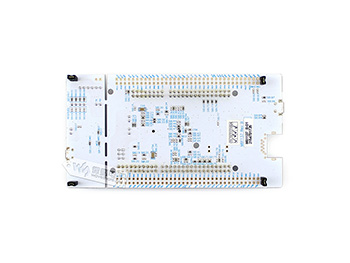

NUCLEO-F446ZE 开发板 图二

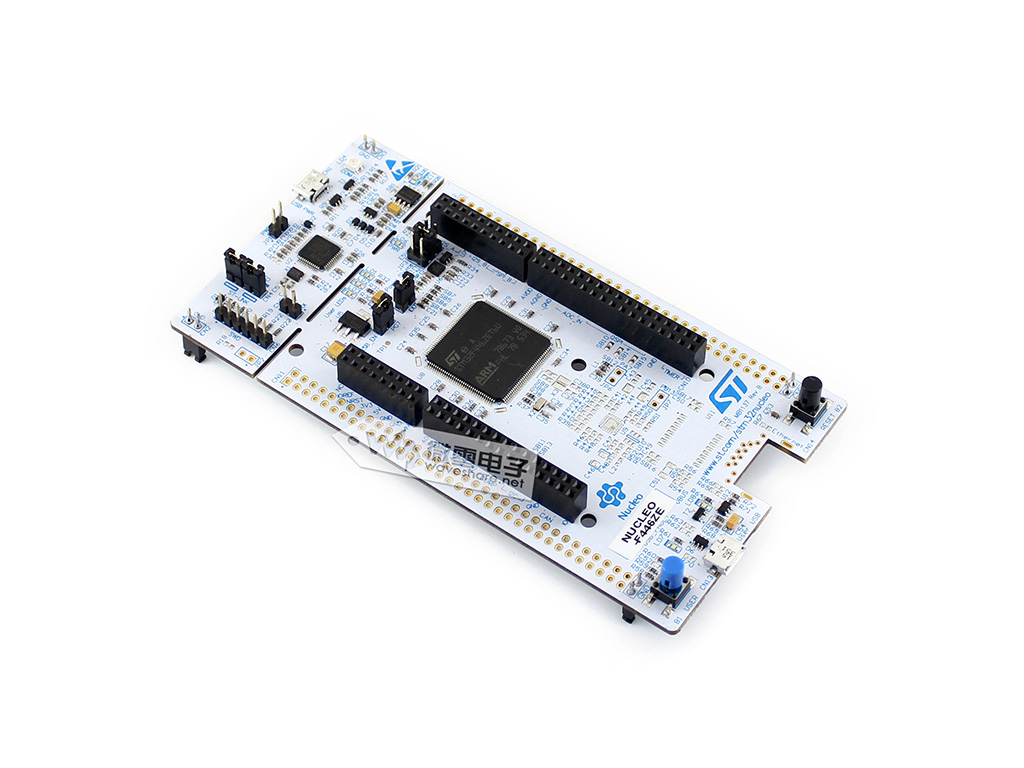

NUCLEO-F446ZE 开发板 图三

NUCLEO-F446ZE 开发板 图四

外形尺寸

开发资料

NUCLEO-F446ZE 目前没有配送光盘。
ST官网资料下载链接: www.st.com/web/catalog/tools/FM116/CL1620/SC959/SS1532/LN1847/PF262632

配置清单

特别注意: 本开发板为原装标配产品,没有配送USB (micro)连接线,如需USB (micro)连接线请另行采购。

  1. NUCLEO-F446ZE x 1
