芯片信息

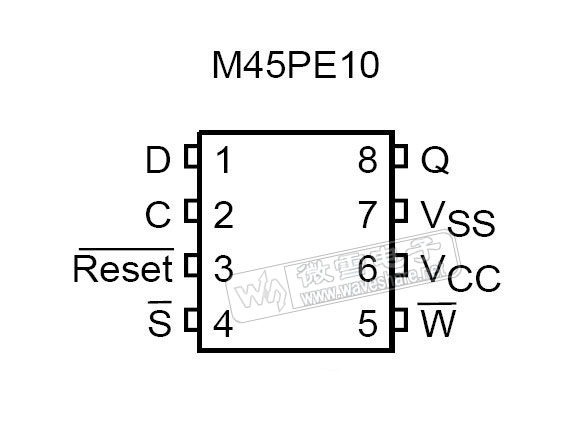

引脚布局

（点击图片看大图）

M45PE10 概述

The M45PE10 is a 1 Mbit (128 Kb x 8 bit) serial paged Flash memory accessed by a high speed SPI-compatible bus. The memory can be written or programmed 1 to 256 bytes at a time, using the page write or page program instruction. The page write instruction consists of an integrated page erase cycle followed by a page program cycle.

M45PE10 is organized as 2 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 512 pages, or 131,072 bytes. The memory can be erased a page at a time, using the page erase instruction, or a sector at a time, using the sector erase instruction.

M45PE10 特性

• SPI bus compatible serial interface.
• 75 MHz clock rate (maximum).
• 2.7 V to 3.6 V single supply voltage.
• 1 Mbit of page-erasable Flash memory.
• Page size: 256 bytes
  - Page Write in 11 ms (typical).
  - Page Program in 0.8 ms (typical).
  - Page Erase in 10 ms (typical).
• Sector Erase (512 Kbits).
• Hardware write protection of the bottom sector (64 Kbytes).
• Electronic signature
  - JEDEC standard two-byte signature (4011h).
  - Unique ID code (UID) with 16 bytes readonly, available upon customer request only in the T9HX process.
• Deep power-down mode 1 μA (typical).
• More than 100,000 write cycles.
• More than 20 years data retention.
• Packages
  - ECOPACK® (RoHS compliant).
