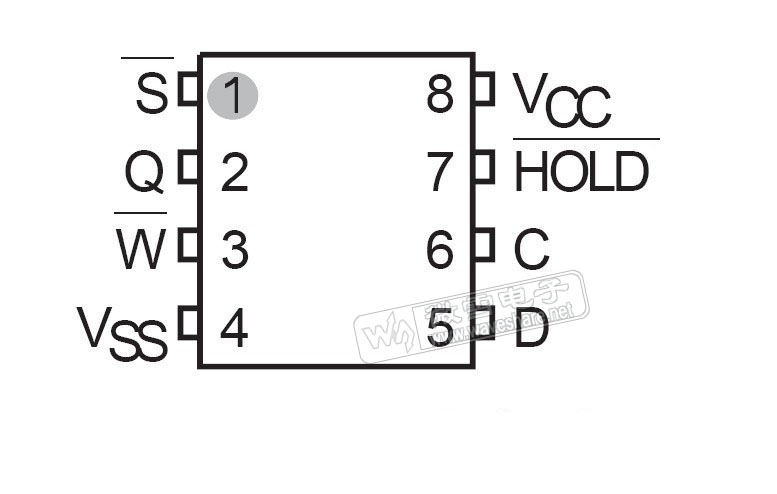

引脚布局

（点击图片看大图）

M25P10-A 概述

The M25P10-A is a 1 Mbit (128 Kbit x 8) serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The memory is organized as 4 sectors, each containing 128 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 512 pages, or 131,072 bytes. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.

M25P10-A 特性

• 1 Mbit of Flash memory.
• Page Program (up to 256 bytes) in 1.4 ms (typical).
• Sector Erase (256 Kbit) in 0.65 s (typical).
• Bulk Erase (1 Mbit) in 1.7 s (typical).
• 2.3 to 3.6 V single supply voltag.
• SPI bus compatible serial interface.
• 50 MHz Clock rate (maximum).
• Deep Power-down mode 1 μA (typical).
• Electronic signature
  - JEDEC standard two-byte signature(2011h).
  - RES instruction, one-byte signature (10h), for backward compatibility.
• More than 20 years' data retention.
• Packages
  - RoHS compliant.
