H57V2562GTR

芯片信息

型号 封装 在线定购
H57V2562GTR-60C(查看) TSOPII54
H57V2562GTR-75C(查看) TSOPII54

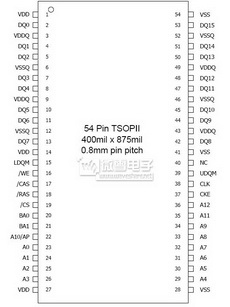

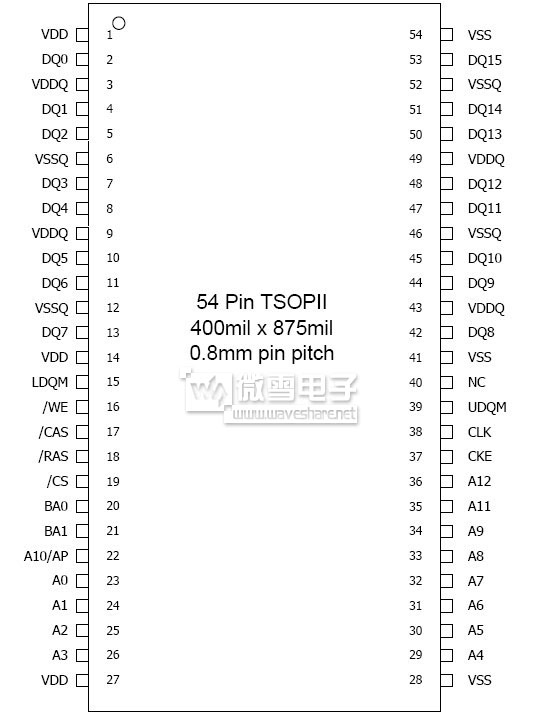

引脚布局

(点击图片看大图)
技术资料—— H57V2562GTR PDF技术资料
H57V2562GTR 参数
H57V2562GTR 性能参数
容量 256Mb
结构 4Banks x 4Mbits x16
接口 LVTTL
工作电压 (V) 3.3
工作温度范围 0 to 70 °C (商业级)
CAS Latency 3
H57V2562GTR 封装与引脚
TSOPII54

H57V2562GTR 概述

H57V2562GTR Synchronous DRAM is 268,435,456bit CMOS Synchronous DRAM, ideally suited for the consumer memory applications which requires large memory density and high bandwidth. It is organized as 4banks of 4,194,304 x 16 I/O.

H57V2562GTR 特性

  • Standard SDRAM Protocol
  • Internal 4bank operation
  • Power Supply Voltage : VDD = 3.3V, VDDQ = 3.3V
  • All device pins are compatible with LVTTL interface
  • Low Voltage interface to reduce I/O power
  • 8,192 Refresh cycles / 64ms
  • Programmable CAS latency of 2 or 3
  • Programmable Burst Length and Burst Type
    • 1, 2, 4, 8 or full page for Sequential Burst
    • 1, 2, 4 or 8 for Interleave Burst
  • Commercial Temp : 0 to 70 °C
  • Package Type : 54_Pin TSOPII
  • This product is in compliance with the directive pertaining of RoHS
