树莓派Qt系列教程21:滑动导航模型SwipeView

2020-8-11 15:53| 发布者: dasi| 查看: 6027| 评论: 0|原作者: dasi

摘要: 这一节我们将学习滑动导航模型SwipeView和页面指示符PageIndicator.......

前言

不知道大家注意过没有,现在很多网站上对于界面的跳转,都更倾向于滑动跳转。这种方式更加柔和,使得人的观感会好一些。而我们这一节要学习的是一个导航模型SwipeView,它提供一个基于滑动的导航模型,使得用户可以通过侧向滑动来浏览界面。

SwipeView的属性

属性

  • horizontal : 保存滑动视图是否为水平
  • interactive : 描述用户是否可以与SwipeView进行交互,设置为true则用户无法滑动
  • orientation : 保留方向
  • vertical : 保存滑动视图是否垂直

附加属性

  • index : 保存SwipeView中每个子项的索引
  • isCurrentItem : 若子项为当前项,则此属性为true
  • isNextItem : 若子项是下一个项目,则此属性为true
  • isPreviousItem : 若子项是上一个项目,则此属性为true
  • view : 包含管理此子项的视图

SwipeView的例程

SwipeView的用法也十分简单,需要为其填充一组页面Page或者是其他的控件,每次可见这组页面中的一页,我们可以通过鼠标左右滑动来在页面之间导航。
import QtQuick 2.7
import QtQuick.Window 2.2
import QtQuick.Controls 2.3

Window {
    visible: true
    width: 640
    height: 480
    title: qsTr("SwipeView")

    SwipeView {
        id: view
        currentIndex: 0
        anchors.fill: parent
        orientation: Qt.Horizontal
        interactive: true

        Rectangle {
            id: firstPage
            color: "purple"
            Text {
                text: qsTr("First")
                anchors.centerIn: parent
                font.pixelSize: 25
            }
        }
        Rectangle {
            id: secondPage
            color: "blue"
            Text {
                text: qsTr("Second")
                anchors.centerIn: parent
                font.pixelSize: 25
            }
        }
        Rectangle {
            id: thirdPage
            color: "green"
            Text {
                text: qsTr("Third")
                anchors.centerIn: parent
                font.pixelSize: 25
            }
        }
    }
}

为SwipeView填充一组矩形充当界面,将当前页currentIndex设置为0,也就是第一页。设置其方向orientation为水平方向,意味着是左右滑动,当设置为Qt.Vertical时,就是上下滑动。最后设置interactive为交互式,其实这个不需要设置,默认为true,当设置为false时,我们就不能通过滑动切换页面了。看一下效果。

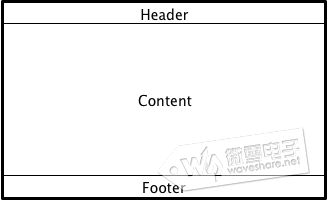

事实上,我们还是建议大家在填充SwipeView的时候选择的是Page组件,Page是一个容器控件,可以方便地将页眉和页脚项添加到页面。它的三个重要属性footer、header、title分别对应着页脚、页眉和标题栏。因为我们的SwipeView本身是不可见的,需要为其设置指示才可以知道当前是第几页。通过page的属性我们可以设置指示栏。

将上述代码中的Rectangle修改为Page,每个Page中除了Text的内容不一样,其他的代码都是一样的。我们就不贴全部的代码了,以第一个Page为例,设置其页眉和页脚,代码如下:

Page{
    header: Rectangle{
        height: 80
        color: "orange"
        Text{
            anchors.centerIn: parent
            text: "First"
            font.pixelSize: 25
        }
    }

    footer: Rectangle{
        height: 30
        color: "orange"
    }
}

一般,我们会将将ToolBar,TabBar或DialogButtonBox分配为页面页脚,但是因为这些控件我们还没学到,所以,这里就用到了最简单的Rectangle。为header页眉设置一个矩形,矩形内设置文字指示当前页面。页脚footer就是一个橘黄色的矩形。其实大家也可以设置Page的title和内容物,使得界面更加丰富完整,我们这里就先不拓展了,剩下的几个页面大家可以自己进行设置。看一下效果。

页面指示符PageIndicator

除了上面通过页眉、标题或者内容来指示当前页之外,QML还提供了一种更为简单的指示当前活动页面的控件,它就是页面指示符PageIndicator。页面指示符通常很小(为了避免使用户从用户界面的实际内容中分散注意力)。它们可能难以点击,并且可能不容易被用户识别为交互式。所以,它们最好用于补充主要的导航方法(例如SwipeView),而不是单独使用。

它的属性非常简单。主要包括:

  • count : 保存页数
  • currentIndex : 保存当前页面的索引
  • delegate : 保存当前页面的索引
  • interactive : 保存控件是否为交互式

我们还是以第一个例程为基础,学习一下PageIndicator的使用。

SwipeView {
    id: view
    currentIndex: pageIndicator.currentIndex
    anchors.fill: parent
    orientation: Qt.Horizontal
    interactive: true

    Rectangle {
        id: firstPage
        color: "purple"
        Text {
            text: qsTr("First")
            anchors.centerIn: parent
            font.pixelSize: 25
        }
    }
    Rectangle {
        id: secondPage
        color: "blue"
        Text {
            text: qsTr("Second")
            anchors.centerIn: parent
            font.pixelSize: 25
        }
    }
    Rectangle {
        id: thirdPage
        color: "green"
        Text {
            text: qsTr("Third")
            anchors.centerIn: parent
            font.pixelSize: 25
        }
    }
}

PageIndicator{
    id: pageIndicator
    interactive: true
    count: view.count
    currentIndex: view.currentIndex
    anchors.bottom: parent.bottom
    anchors.horizontalCenter: parent.horizontalCenter
}

通过前面属性的设置大家应该也很容易明白,设置interactive为交互式,设置count为SwipeView的页面数,设置currentIndex为当前页面。我们想要实现按动PageIndicator实现页面的切换,所以还需设置SwipeView的currentIndex为指示符指示的当前页,这样就实现乐两者的交互。是不是很简单?看一下结果。

效果上和之前单纯使用SwipeView差不多,但是页面下方多了几个小圆点,这个就是指示符,通过指示符,我们可以清楚的看到一共有多少个页面和当前在第几个页面。我们还可以自己设置指示符的外观,PageIndicator有三个可视化项,分别是background, content item, and delegate,我们看一下官方例程了解一下怎么自定义PageIndicator。

PageIndicator {
    id: control
    anchors.centerIn: parent
    count: 5
    currentIndex: 2

    delegate: Rectangle {
        implicitWidth: 8
        implicitHeight: 8

        radius: width / 2
        color: "#21be2b"

        opacity: index === control.currentIndex ? 0.95 : 0.45
    }
}

可以看到设置了页数为5,当前页是第三页,注意,currentIndex是从0开始的。然后设置PageIndicator的委托delegate,也就是一个个的小圆点,这里有一个opacity透明度需要说一下,它的设置是需要判断一下的,当前页面指示符的透明度就是0.95,其他页面指示符的透明度为0.45。运行看一下效果。

总结

源码:21.zip

滑动导航模型SwipeView除了指示页面滑动,还有其他的用途,总之应用时很广泛的,下一节我们要讲另外一种导航模型,我们下节再会吧!
