TPS62056

芯片信息

型号 封装 在线定购
TPS62056DGSR(查看) MSOP10

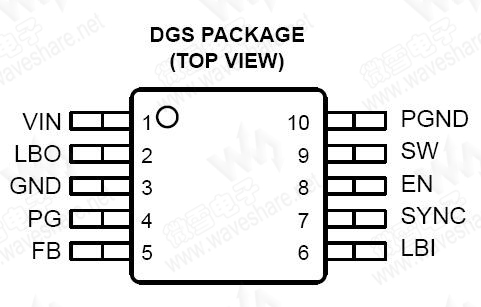

引脚布局

(点击图片看大图)
技术资料—— TPS62056 PDF技术资料

TPS62056 概述

The TPS62056 devices is a high-efficiency synchronous step-down dc/dc converter ideally suited for systems powered from a 1-cell or 2-cell Li-Ion battery or from a 3-cell to 5-cell NiCd, NiMH, or alkaline battery.

The TPS62056 is a synchronous PWM converter with integrated N-channel and P-channel power MOSFET switches. Operating frequency is typically 850 kHz, allowing the use of small inductor and capacitor values. The TPS62056 can be synchronized to an external clock signal in the range of 600 kHz to 1.

TPS62056 参数
TPS62056 基本参数
Vin (V)   2.7~10
Vout (V)   3.3~3.3
TPS62056 其他特性
可调输出端   1
Iq (Typ)(mA)   0.012
TPS62056 封装与引脚
MSOP10

TPS62056 特性

  • High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency
  • 12-µA Quiescent Current (TYP)
  • 2.7 V to 10 V Operating Input Voltage Range
  • Fixed Output Voltage of 3.3 V
  • Synchronizable to External Clock Signal up to 1.2 MHz
  • High Efficiency Over a Wide Load Current Range in Power Save Mode
  • 100% Maximum Duty Cycle for Lowest Dropout
  • Low Noise Operation in Forced Fixed Frequency PWM Operation Mode
  • Internal Softstart
  • Overtemperature and Overcurrent Protected
  • Available in 10-Pin Microsmall Outline Package MSOP

TPS62056 应用

  • Cellular Phones
  • Organizers, PDAs, and Handheld PCs
  • Low Power DSP Supply
  • Digital Cameras and Hard Disks
