TPS62026

订购信息

型号 封装 在线定购
TPS62026DGQR(查看) MSOP-PowerPAD-10

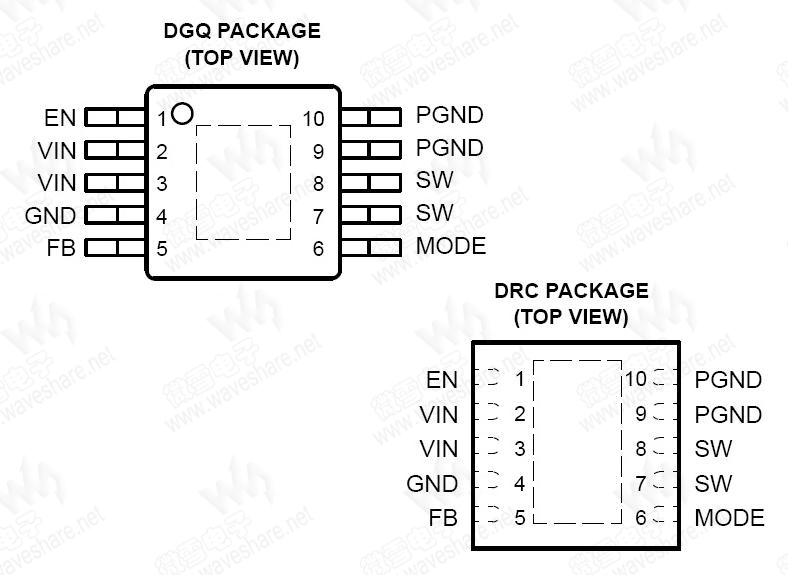

引脚布局

(点击图片看大图)
技术资料—— TPS62026 PDF技术资料

TPS62026 概述

The TPS62026 is a high efficiency synchronous step-down dc-dc converter optimized for battery powered portable applications. The TPS62026 is ideal for portable applications powered by a single Li-Ion battery cell or by 3-cell NiMH/NiCd batteries. With an output voltage range from 6.0 V down to 0.7 V, the TPS62026 supports low voltage DSPs and processors in PDAs, pocket PCs, as well as notebooks and subnotebook computers. The TPS62026 operates at a fixed switching frequency of 1.25 MHz and enters the power save mode operation at light load currents to maintain high efficiency over the entire load current range. For low noise applications, the TPS62026 can be forced into fixed frequency PWM mode by pulling the MODE pin high.

TPS62026 参数
TPS62026 基本参数
Vin (V)   2.5~6
Vout (V)   3.3~3.3
TPS62026 其他特性
可调输出端   1
Iq (Typ)(mA)   0.018
TPS62026 封装与引脚
MSOP-PowerPAD-10, SON10

TPS62026 特性

  • Up to 95% Conversion Efficiency
  • Typical Quiescent Current: 18 µA
  • Load Current: 600 mA
  • Operating Input Voltage Range: 2.5 V to 6.0 V
  • Switching Frequency: 1.25 MHz
  • Fixed Output Voltage
  • Power Save Mode Operation at Light load Currents
  • Active-Low MODE\ pin on TPS62021
  • 100% Duty Cycle for Lowest Dropout
  • Internal Softstart
  • Dynamic Output Voltage Positioning
  • Thermal Shutdown
  • Short-Circuit Protection

TPS62026 应用

  • PDA, Pocket PC and Smart Phones
  • USB Powered Modems
  • CPUs and DSPs
  • PC Cards and Notebooks
