POWER开关器件 TOP100

TOP100

芯片信息

型号 封装 在线定购
TOP100YAI（查看） TO-220

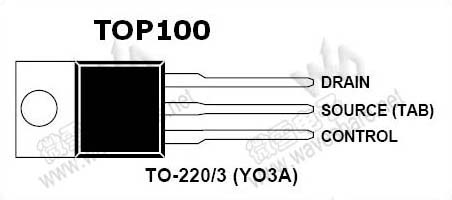

引脚布局

（点击图片看大图）
技术资料—— TOP100 PDF技术资料

TOP100 概述


　　The TOP100 implements, with only three pins, all functions necessary for an off-line switched mode control system: high voltage N-channel power MOSFET with controlled turn-on gate driver, voltage mode PWM controller with integrated 100 kHz oscillator, high voltage start-up bias circuit, bandgap derived reference, bias shunt regulator/error amplifier for loop compensation and fault protection circuitry.
　　Compared to discrete MOSFET and controller or self oscillating (RCC) switching converter solutions, The TOP100 integrated circuit can reduce total cost, component count, size, weight and at the same time increase efficiency and system reliability. The TOP100 is intended for 100/110 VAC off-line Power Supply applications in the 0 to 60 W range and power factor correction (PFC) applications in the 0 to 110 W range. The TOP100 is also well suited for Telecom, Cablecom and other DC to DC converter applications in the 0-25 W range.
TOP100 参数
TOP100 基本参数
输出电压   5.8V
频率范围   90～110kHz
工作温度   -40℃～150℃
隔离输出   √
TOP100 输出功率
反激式   100/110 VAC 0-20 W
  48 VDC 0-6.8 W
功率因数校正/ 升压   100/110 VAC 0-30 W
TOP100 封装类型
Y(TO-220/3)

TOP100 特性

    Low Cost Replacement for Discrete Switchers
  • 20 to 50 fewer components - cuts cost, increases reliability
  • Source-connected tab and Controlled MOSFET turn-on reduce EMI and EMI filter costs
  • Allows for a 50% smaller and lighter solution
  • Cost competitive with linears above 5 W
    Up to 90% Efficiency in Flyback Topology
  • Built-in start-up and current limit reduce DC losses
  • Low capacitance 350 V MOSFET cuts AC losses
  • CMOS controller/gate driver consumes only 6 mW
  • 70% maximum duty cycle minimizes conduction losses
    Simplifies Design - Reduces Time to Market
  • Supported by many reference designs
  • Integrated PWM Controller and 350 V MOSFET in a industry standard three pin TO-220 package
  • Only one external capacitor needed for compensation,bypass and start-up/auto-restart functions
    System Level Fault Protection Features
  • Auto-restart and cycle by cycle current limiting functions handle both primary and secondary faults
  • On-chip latching thermal shutdown protects the entire system against overload
    Highly Versatile
  • Implements Buck, Boost, Flyback or Forward topology
  • Easily interfaces with both opto and primary feedback
  • Supports continuous or discontinuous mode of operation
  • Specified for operation down to 16 V DC input
