TLC7528

订购信息

型号 封装 在线定购
TLC7528CDW(查看) SOIC20
TLC7528CN(查看) PDIP20

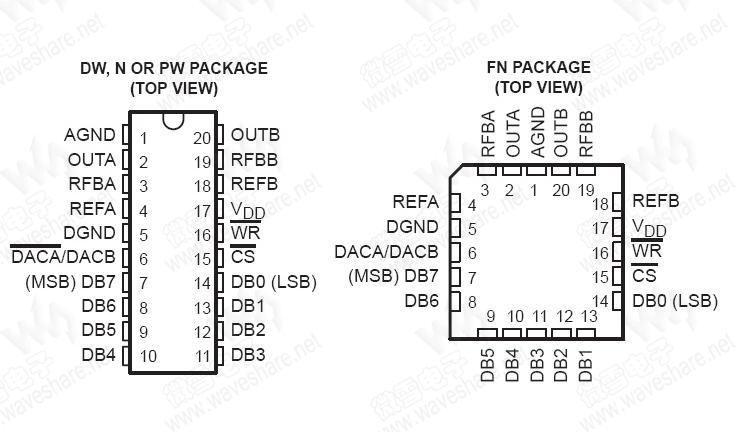

引脚布局

(点击图片看大图)
技术资料—— TLC7528 PDF技术资料

TLC7528 概述

The TLC7528 are dual, 8-bit, digital-to-analog converters (DACs) designed with separate on-chip data latches and feature exceptionally close DAC-to-DAC matching.

The TLC7528 operate from a 5V to 15V power supply and dissipates less than 15 mW (typical). The 2- or 4-quadrant multiplying makes these devices a sound choice for many microprocessor-controlled gain-setting and signal-control applications. The TLC7528 can be operated in voltage mode, which produces a voltage output rather than a current output. Refer to the typical application information in this data sheet.

TLC7528 参数
TLC7528 基本参数
分辨率(Bits)   8
采样率   10 MSPS
TLC7528 其他特性
工作电压(V)   4.75-15.75
通道数   2
TLC7528 封装与引脚
PDIP20, PLCC20, SO20, SOIC20, TSSOP20

TLC7528 特性

  • Easily Interfaced to Microprocessors
  • On-Chip Data Latches
  • Monotonic Over the Entire A/D Conversion Range
  • Interchangeable With Analog Devices AD7528 and PMI PM-7528
  • Fast Control Signaling for Digital Signal Processor (DSP) Applications Including Interface With TMS320
  • Voltage-Mode Operation
  • CMOS Technology
