型号 封装 在线定购
TLC1543CDWR(查看) SOIC20
TLC1543CN(查看) PDIP20


技术资料—— TLC1543 PDF技术资料

TLC1543 概述

The TLC1543 are CMOS 10-bit switched-capacitor successive-approximation analog-to-digital converters. The TLC1543 have three inputs and a 3-state output [chip select (CS), input-output clock (I/O CLOCK), address input (ADDRESS), and data output (DATA OUT)] that provide a direct 4-wire interface to the serial port of a host processor. The TLC1543 allow high-speed data transfers from the host.

In addition to a high-speed A/D converter and versatile control capability, the TLC1543 have an on-chip 14-channel multiplexer that can select any one of 11 analog inputs or any one of three internal self-test voltages. The sample-and-hold function is automatic. At the end of A/D conversion, the end-of-conversion (EOC) output goes high to indicate that conversion is complete. The converter incorporated in the TLC1543 features differential high-impedance reference inputs that facilitate ratiometric conversion, scaling, and isolation of analog circuitry from logic and supply noise. A switched-capacitor design allows low-error conversion over the full operating free-air temperature range.

TLC1543 参数
TLC1543 基本参数
分辨率(Bits)   10
采样速率(max)   38 kSPS
TLC1543 其他特性
工作电压(V)   4.5~5.5
输入通道数   11

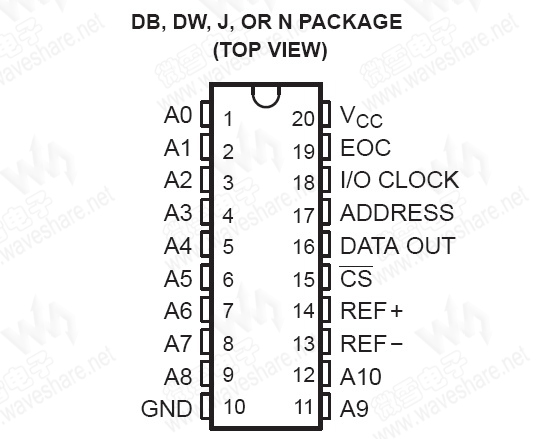

TLC1543 封装与引脚

TLC1543 特性

  • 10-Bit Resolution A/D Converter
  • 11 Analog Input Channels
  • Three Built-In Self-Test Modes
  • Inherent Sample-and-Hold Function
  • Total Unadjusted Error: ±1 LSB Max
  • On-Chip System Clock
  • End-of-Conversion (EOC) Output
  • Terminal Compatible With TLC542
  • CMOS Technology
