STM32L476G-DISCO STM32L476VGT6开发板 评估板

板载ST-LINK/V2 支持仿真调试

已停产

型号
STM32L476G-DISCO
SKU
11581
  • 产品详情
  • 产品资料
  • 配置清单

产品简介

The 32L476GDISCOVERY helps users to develop and share applications with the STM32L4 ultra-low-power microcontrollers.The Discovery kit combines STM32L476 features with LCD, LEDs, audio DAC, sensors (microphone, 3 axis gyroscope, 6 axis compass), joystick, USB OTG, Quad-SPI Flash memory, expansion and probing connectivity. It includes an embedded Ammeter which measures the MCU consumption in low power modes. An external board can be connected thanks to extension and probing connectors.

STM32L476G-DISCO(32L476GDISCOVERY )是ST公司推出的一款针对STM32L476设计的开发板,可帮助您探索STM32L4超低功耗系列,并轻松开发自己的应用。

STM32L476G-DISCO整合了STM32L476与LCD、LED、音频DAC、传感器(麦克风,3轴陀螺仪,6轴罗盘)、摇杆、USB OTG FS和Quad-SPI闪存等功能外设,并且带有一个嵌入式Ammeter,可测量MCU在低功耗模式下的消耗。开发板还引出了扩展接口,方便接入其他功能扩展板。

ST提供丰富的示例程序,让您更快速的入门STM32L4单片机。一起来释放您的创造力吧!

【特点】
  • STM32L476VGT6 microcontroller featuring 1 Mbyte of Flash memory, 128 Kbytes of RAM in LQFP100 package
  • On-board ST-LINK/V2-1 supporting USB re-enumeration capability
  • Three different interfaces supported on USB:
    • Virtual com port
    • Mass storage
    • Debug port
  • Mbed-enabled (mbed.org)
  • LCD 24 segments, 4 commons in DIP 28 package
  • Seven LEDs:
    • LD1 (red/green) for USB communication
    • LD2 (red) for 3.3 V power on
    • LD3 Over current (red)
    • LD4 (red), LD5 (green) two user LEDs
    • LD6 (green), LD7 (red) USB OTG FS LEDs
  • Pushbutton (reset)
  • Four directions Joystick with selection
  • USB OTG FS with micro-AB connector
  • SAI Audio DAC, Stereo with output jack
  • Digital Microphone MEMS Accelerometer and magnetometer Mems
  • Gyroscope MEMS
  • 128-Mbit Quad-SPI Flash memory
  • MCU current ammeter with 4 ranges and auto calibration
  • Connector for external board or RF-EEPROM
  • Four power supply options:
    • ST-LINK/V2-1
    • USB FS connector
    • External 5 V
    • CR2032 battery (not provided)
  • Extension connectors
  • Comprehensive free software including a variety of examples, part of STM32Cube package

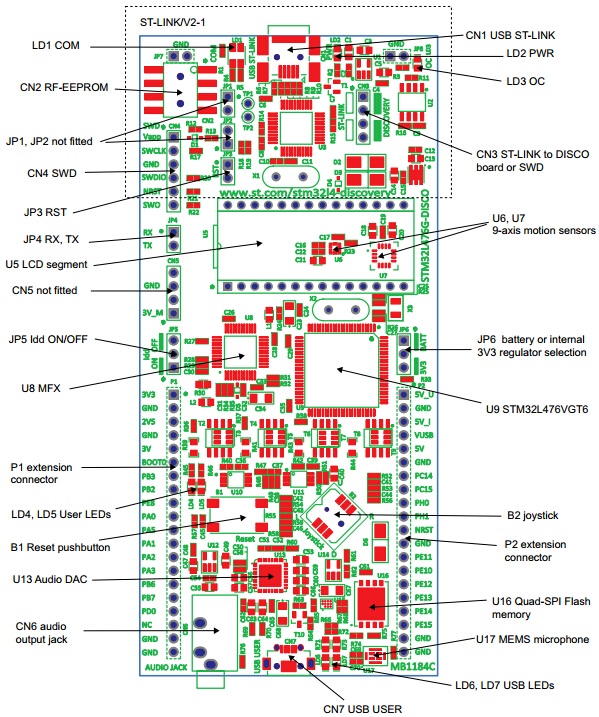

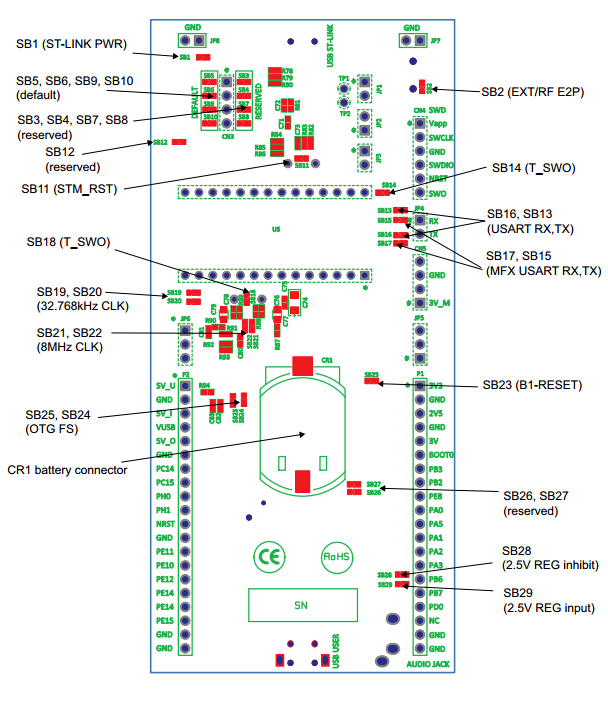

【资源简介图】

正面

背面

产品图片


STM32L476G-DISCO 带包装正面图

STM32L476G-DISCO 带包装反面图

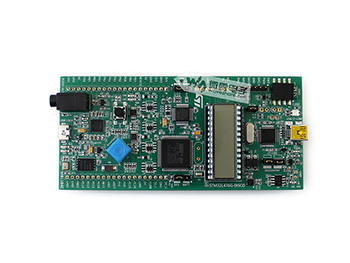

STM32L476G-DISCO 开发板 图一

STM32L476G-DISCO 开发板 图二

STM32L476G-DISCO 开发板 图三

STM32L476G-DISCO 开发板 图四

外形尺寸

开发资料

STM32L476G-DISCO 目前没有配送光盘。
ST官网资料下载链接:www.st.com/web/catalog/tools/FM116/CL1620/SC959/SS1532/LN1848/PF261635

配置清单

特别注意: 本开发板为原装标配产品,没有配送USB (mini)连接线,如需 USB (mini)连接线 请另行采购。
