STM32L100C-DISCO STM32L100RCT6开发板 评估板

板载ST-LINK/V2 支持仿真调试

已停产

型号
STM32L100C-DISCO
SKU
11580
  • 产品详情
  • 配置清单

产品简介

The 32L100CDISCOVERY helps you to discover the features of the STM32L100 Value Line 32-bit Cortex®-M3 microcontrollers and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32L100RCT6 , it includes an ST-LINK/V2 embedded debug tool, LEDs, pushbuttons for easy connection of additional components and modules.

STM32L100C-DISCO是ST公司推出的一款针对STM32L100设计的开发板,可帮助您探索32-bit Cortex®-M3超值型系列,轻松开发自己的应用,还提供有完善的资料能帮助所有初学者和有经验开发人员快速上手。

STM32L100C-DISCO基于STM32L100RCT6设计,集成了ST-LINK/V2仿真下载器(但仅对外提供SWD接口),免除您另外采购仿真器或下载器的麻烦,还带有LED、按钮等外设,方便开发调试。

【特点】
  • STM32L100RCT6 microcontroller featuring 256 KB of Flash memory, 16 KB of RAM in an LQFP64 package
  • On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
  • Board power supply: through USB bus or from an external 5 V supply voltage
  • External application power supply: 3 V and 5 V
  • Four LEDs:
    • LD1 (red) for 3.3 V power on
    • LD2 (red/green) for USB communication
    • LD3 (green) for PC9 output
    • LD4 (blue) for PC8 output
  • Two push buttons (user and reset)
  • Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing
  • Comprehensive free software including a variety of examples, part of STSW-STM32131 package
【资源简介图】

开发资料

STM32L100C-DISCO 目前没有配送光盘。
ST官网资料下载链接: www.st.com/web/catalog/tools/FM116/CL1620/SC959/SS1532/LN1848/PF259096

产品图片


STM32L100C-DISCO 带包装正面图

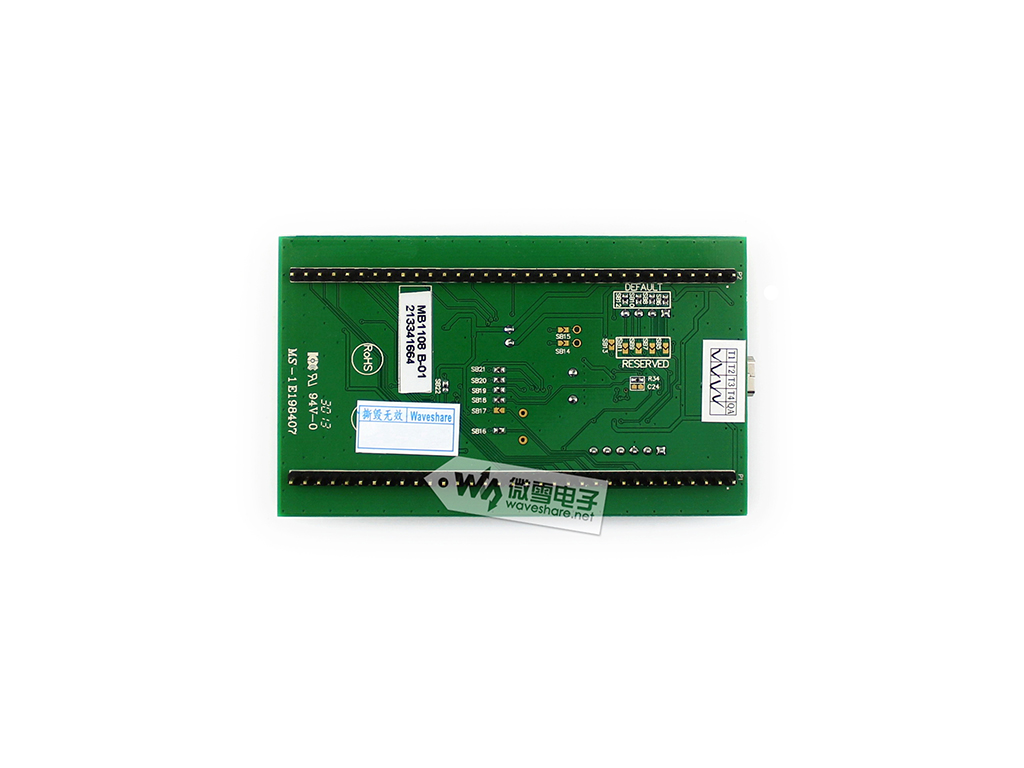

STM32L100C-DISCO 带包装反面图

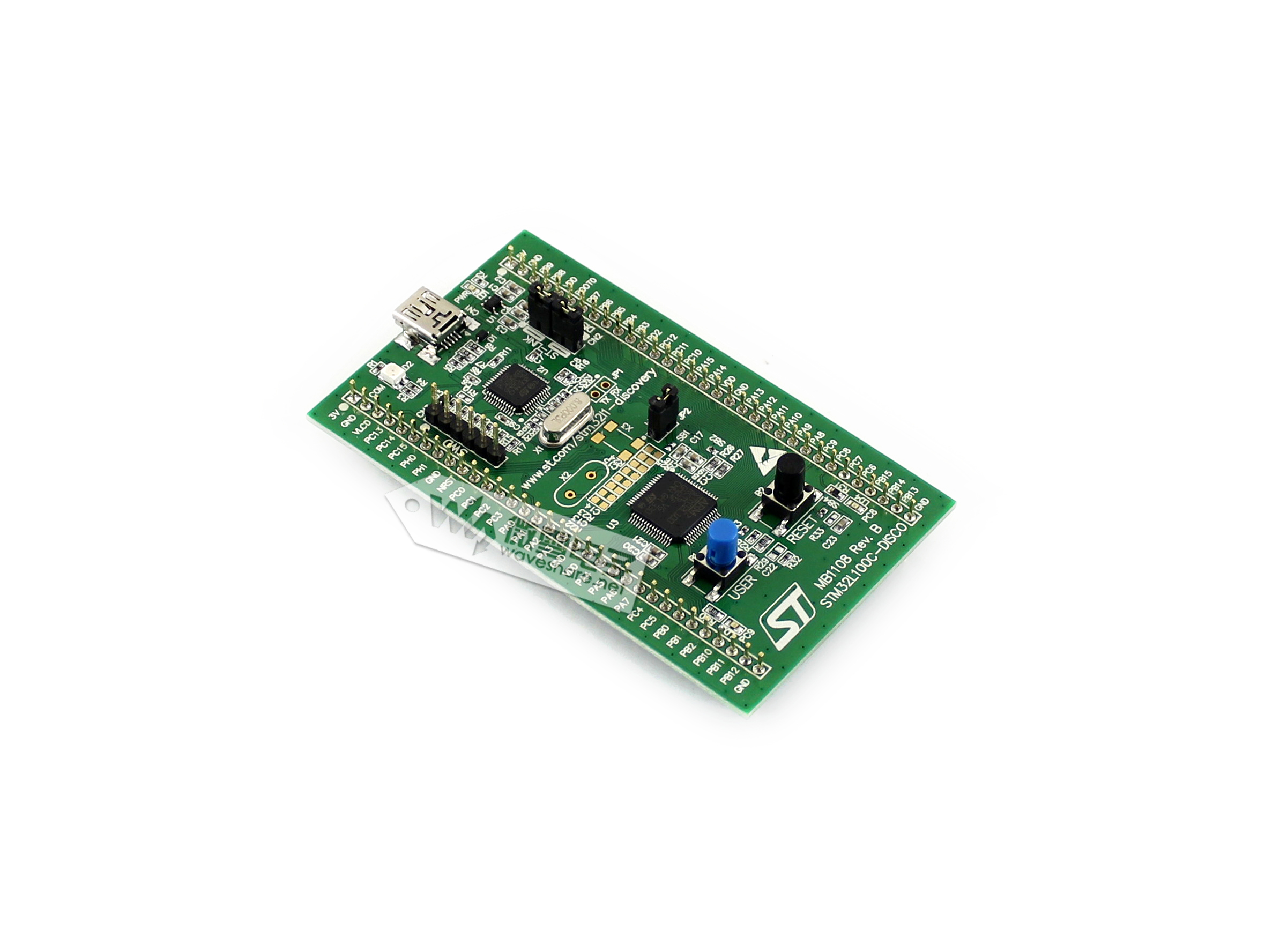

STM32L100C-DISCO 开发板 图一

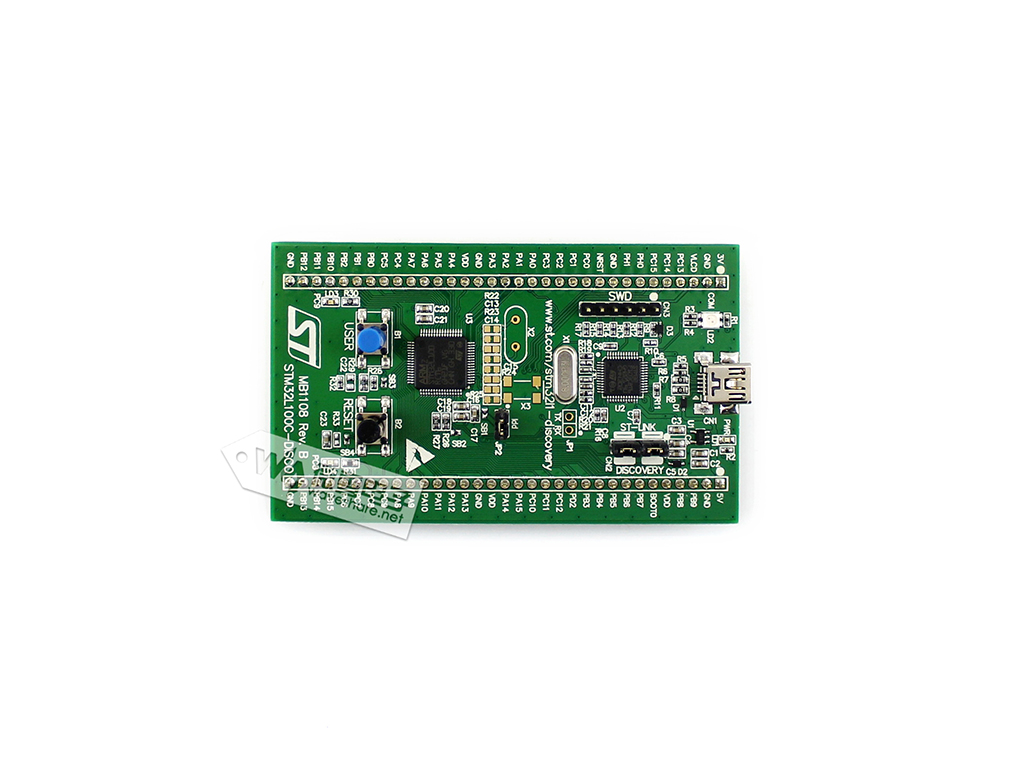

STM32L100C-DISCO 开发板 图二

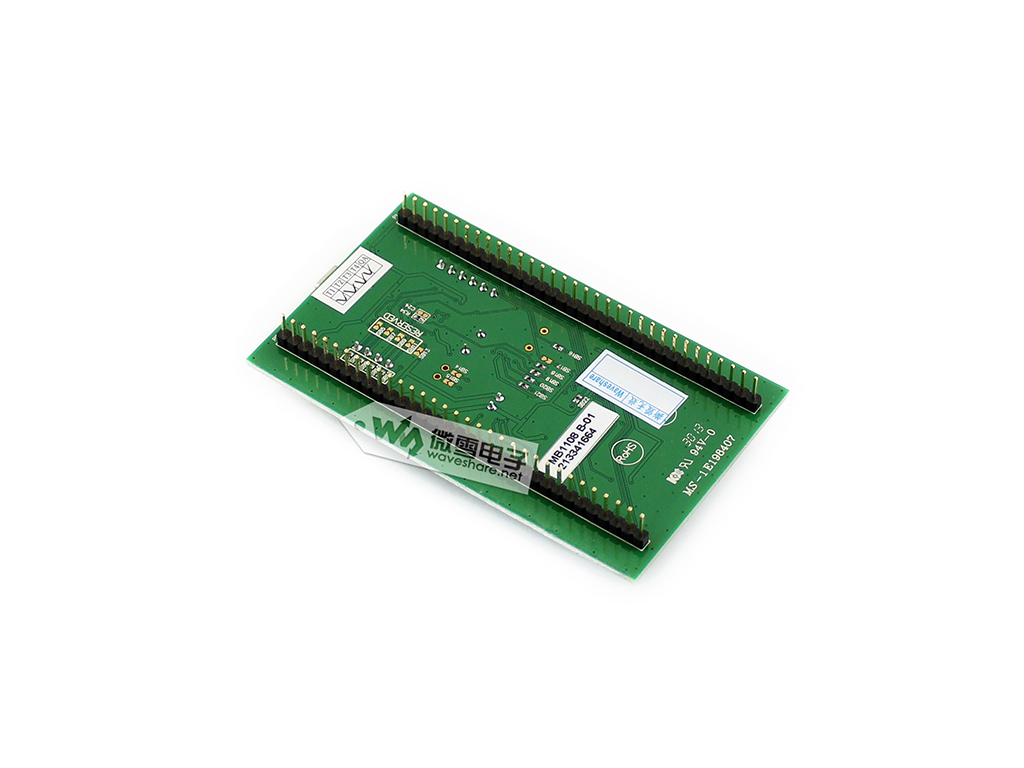

STM32L100C-DISCO 开发板 图三

STM32L100C-DISCO 开发板 图四

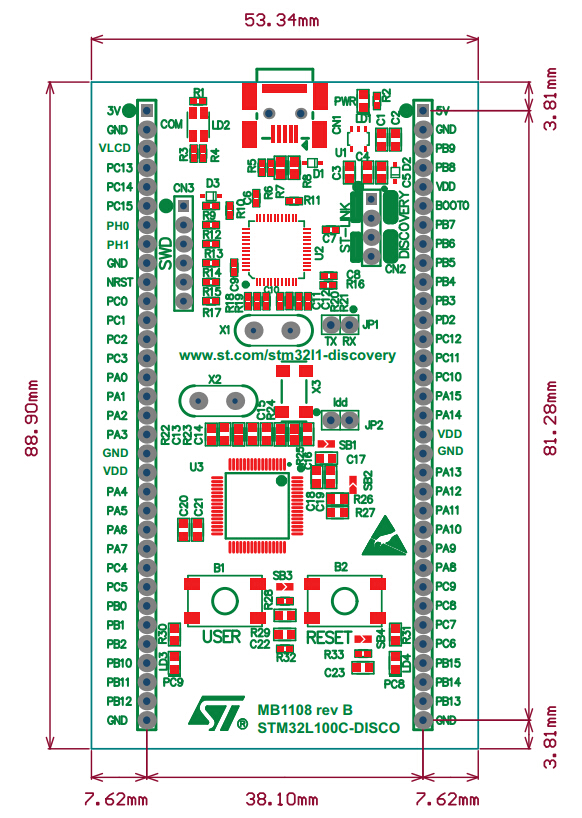

外形尺寸

配置清单

特别注意: 本开发板为原装标配产品,没有配送USB (mini)连接线,如需USB (mini)连接线请另行采购。

  1. STM32L100C-DISCO x 1
1
