STM32F4DISCOVERY

主要参数
型号 STM32F4DISCOVERY
规格
品牌 ST
备注 STM32F407G-DISC1
价格表
对应数量 @1set @2set @3set @4set
不含税 168 163 160 158
含5%普税 176.4 171.15 168 165.9
含17%增税 196.56 190.71 187.2 184.86
版权所有,侵权必究。未经许可,不得用于商业用途。
本产品为ST原装新版本STM32F407G-DISC1,兼容旧版本STM32F4DISCOVERY

产品简介

The STM32F4DISCOVERY Discovery kit allows users to easily develop applications with the STM32F407 high performance microcontrollers with ARM®Cortex®-M4 32-bit core. It includes everything required either for beginners or for experienced users to get quickly started.

Based on the STM32F407VGT6, it includes an ST-LINK/V2-A embedded debug tool, two ST MEMS digital accelerometers, a digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

To expand the functionality of the STM32F4DISCOVERY Discovery kit with the Ethernet connectivity, LCD display and more, visit the www.st.com/stm32f4dis-expansion webpage.

STM32F4DISCOVERY 是ST公司推出的一款针对高性能STM32F4系列设计的Cortex-M4开发板。

开发板基于STM32F407VGT6设计,开发板还集成了ST-LINK/V2-A仿真下载器(但仅对外提供SWD接口),免除您另外采购仿真器或下载器的麻烦。更增添了传感器LIS302DL 或LIS3DSH ,数字麦克风MP45DT02,扬声器驱动和一个micro-AB型USB接口。

ST提供丰富的示例程序,让您更快速的入门STM32F4单片机。一起来释放您的创造力吧!

【特点】
  • STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex®-M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package
  • On-board ST-LINK/V2-A
  • ARM®mbed™ -enabled (http://mbed.org)
  • USB ST-LINK with re-enumeration capability and three different interfaces:
    • Virtual com port
    • Mass storage
    • Debug port
  • Board power supply: through USB bus or from an external 5 V supply voltage
  • External application power supply: 3 V and 5 V
  • LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
  • MP45DT02 ST MEMS audio sensor omni-directional digital microphone
  • CS43L22 audio DAC with integrated class D speaker driver
  • Eight LEDs:
    • LD1 (red/green) for USB communication
    • LD2 (red) for 3.3 V power on
    • Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
    • 2 USB OTG LEDs LD7 (green) VBUS and LD8 (red) over-current
  • Two push buttons (user and reset)
  • USB OTG FS with micro-AB connector
  • Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
  • Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32068 for legacy standard libraries usage

【资源简介图】

开发资料

STM32F4DISCOVERY 目前没有配送光盘,客户需登陆ST官网下载:http://www.st.com/content/st_com/en/products/evaluation-tools/product-evaluation-tools/mcu-eval-tools/stm32-mcu-eval-tools/stm32-mcu-discovery-kits/stm32f4discovery.html

STM32F4DISCOVERY出厂演示视频www.waveshare.net/wiki/STM32F4DISCOVERY

产品图片

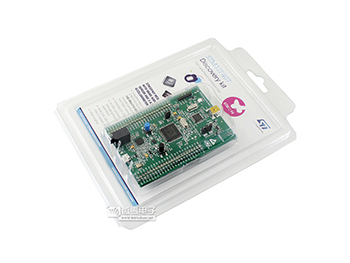

STM32F4-DISCOVERY 带包装正面图

STM32F4-DISCOVERY 带包装反面图

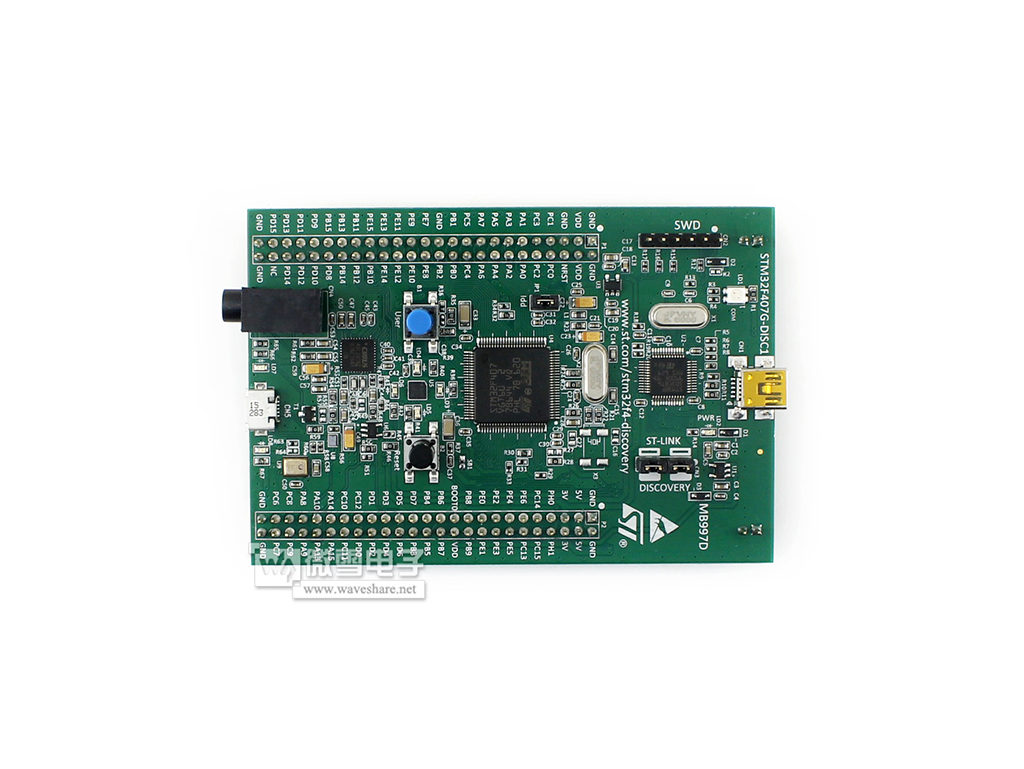

STM32F4 开发板 图一

STM32F4 开发板 图二

STM32F4 开发板 图三

STM32F4 开发板 大量现货库存

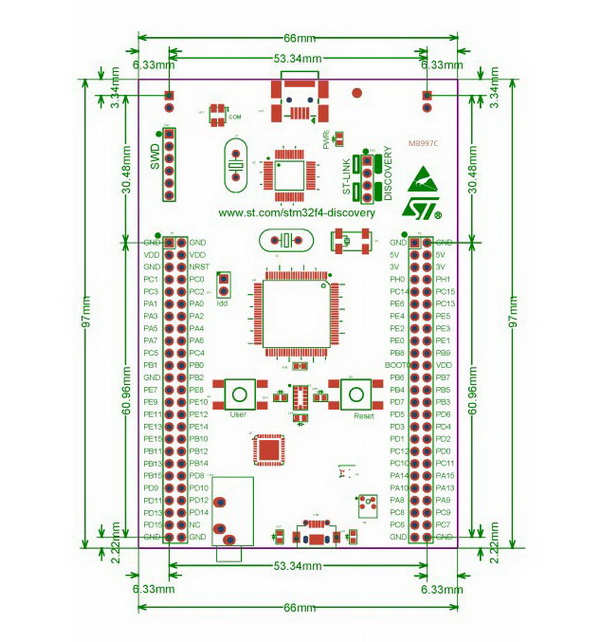

外形尺寸

配置清单

特别注意: 本开发板为原装标配产品,没有配送USB (mini)连接线,如需USB (mini)连接线请另行采购。

  1. STM32F4DISCOVERY x 1
