STM32F469I-DISCO

主要参数
型号 STM32F469I-DISCO
SKU 11382 库存
规格   品牌 ST
备注
价格表
对应数量 @1set @2set @3set @4set
税前 488 470 466 462
含5%普税 512.4 493.5 489.3 485.1
含16%增税 566.08 545.2 540.56 535.92
版权所有,侵权必究。未经许可,不得用于商业用途。

产品简介

The STM32F469 Discovery kit (32F469IDISCOVERY) allows users to easily develop applications with the STM32F469 high-performance MCUs with ARM®Cortex®-M4 core and Chrom-ART Accelerator™.

The discovery kit enables a wide range of use cases taking advantage of premium graphics, audio, multi-sensor support, WVGA color display, security, memory extension and connectivity features. An embedded ST-LINK/V2-1 debugger/programmer is included; specialized add-on boards can be connected thanks to the Arduino™ UNO or to the expansion connectors.

STM32F469I-DISCO(32F469IDISCOVERY)是ST公司推出的一款针对STM32F4系列设计的开发板。可帮助您快速探索ARM®Cortex®-M4,并轻松开发自己的应用 。

基于STM32F469NIH6设计,板载ST-Link/V2-1仿真下载器(对外仅提供SWD接口),免除您另外购买仿真器或下载器的麻烦。并且具备Arduino接口,可接入 Arduino 巨大生态系统中的各种扩展板(Shield),让您能够轻松快速增加特殊功能。

STM32F469I-DISCO由于其在音视频处理,多传感器支持,图形化,安全性和高速通信等方面的优良特性,使它的应用范围非常广泛,诸如音视频录像机,家庭防盗报警,人机界面等等。

特点

  • STM32F469NIH6 microcontroller featuring 2 Mbytes of Flash memory and 324 Kbytes of RAM in BGA216 package
  • On-board ST-LINK/V2-1 SWD debugger, supporting USB reenumeration capability:
  • Mbed-enabled (mbed.org)
  • USB functions: USB virtual COM port, mass storage, debug port
  • 4 inches 800x480 pixel TFT color LCD with MIPI DSI interface and capacitive touch screen
  • SAI Audio DAC, with a stereo headphone output jack
  • 3 MEMS microphones
  • MicroSD card connector
  • I2C extension connector
  • 4Mx32bit SDRAM
  • 128-Mbit Quad-SPI NOR Flash
  • Reset and wake-up buttons
  • 4 color user LEDs
  • USB OTG FS with Micro-AB connector
  • Three power supply options:
  • Expansion connectors and Arduino™ UNO V3 connectors
  • Comprehensive free software including a variety of examples, part of STM32Cube package
  • Supported by a wide choice of integrated development environments

开发资料

STM32F469I-DISCO 目前没有配送光盘,客户需登陆ST官网下载: http://www.st.com/web/catalog/tools/FM116/CL1620/SC959/SS1532/LN1848/PF262395

产品图片

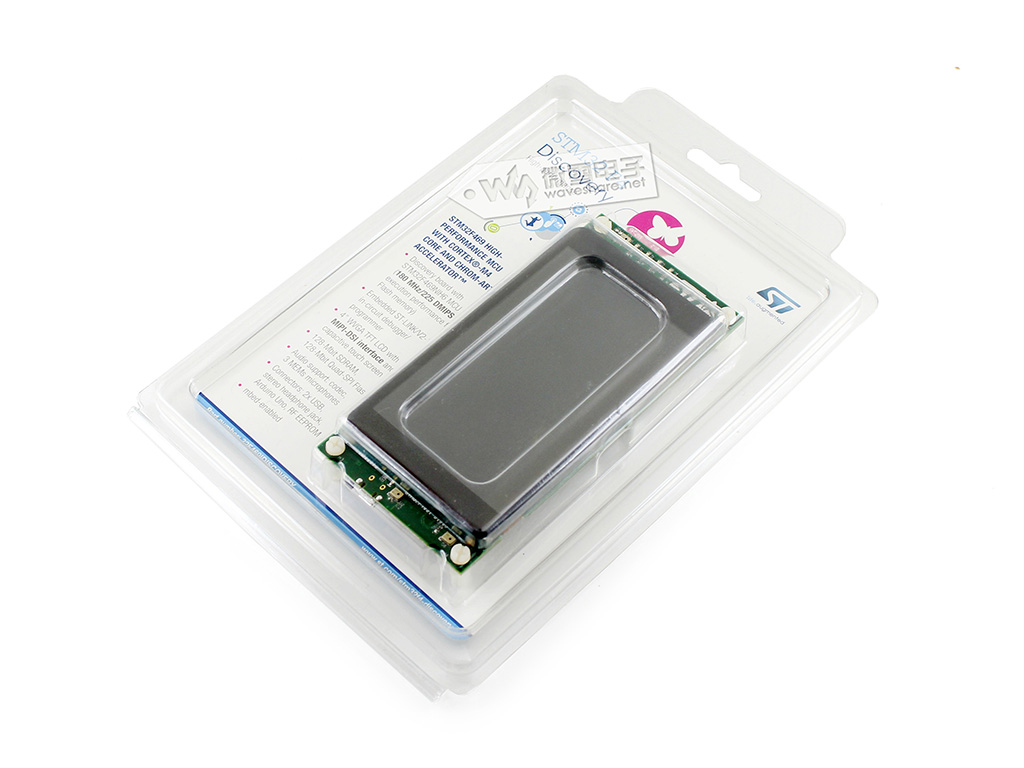

STM32F469I-DISCO 带包装正面图

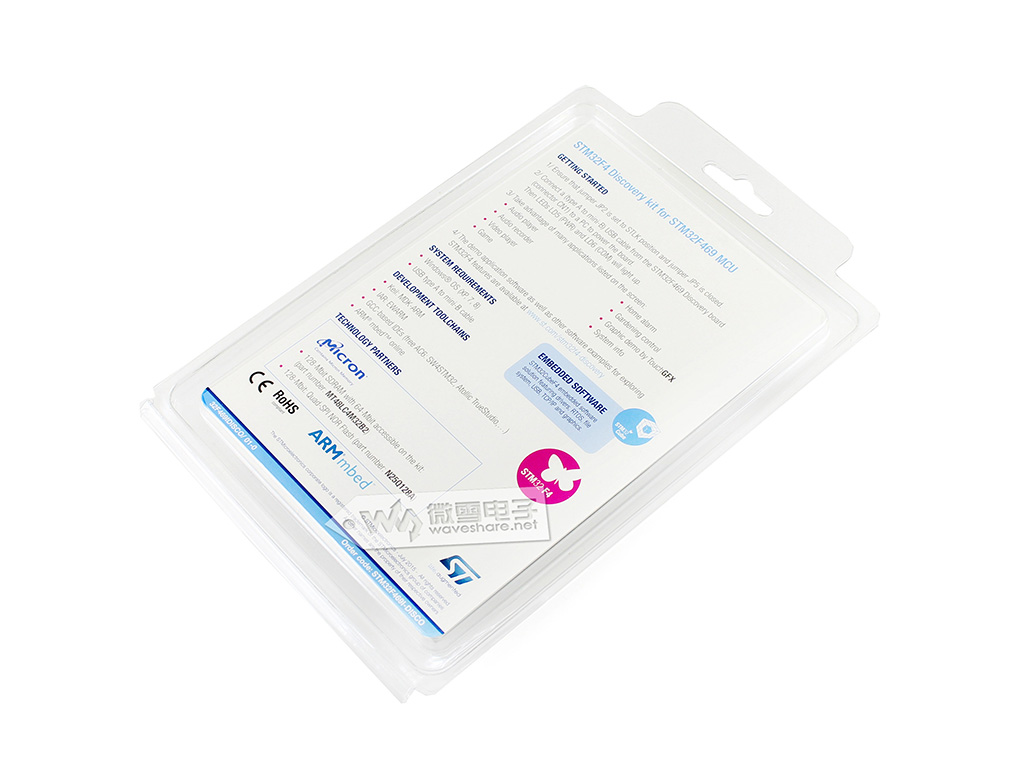

STM32F469I-DISCO 带包装反面图

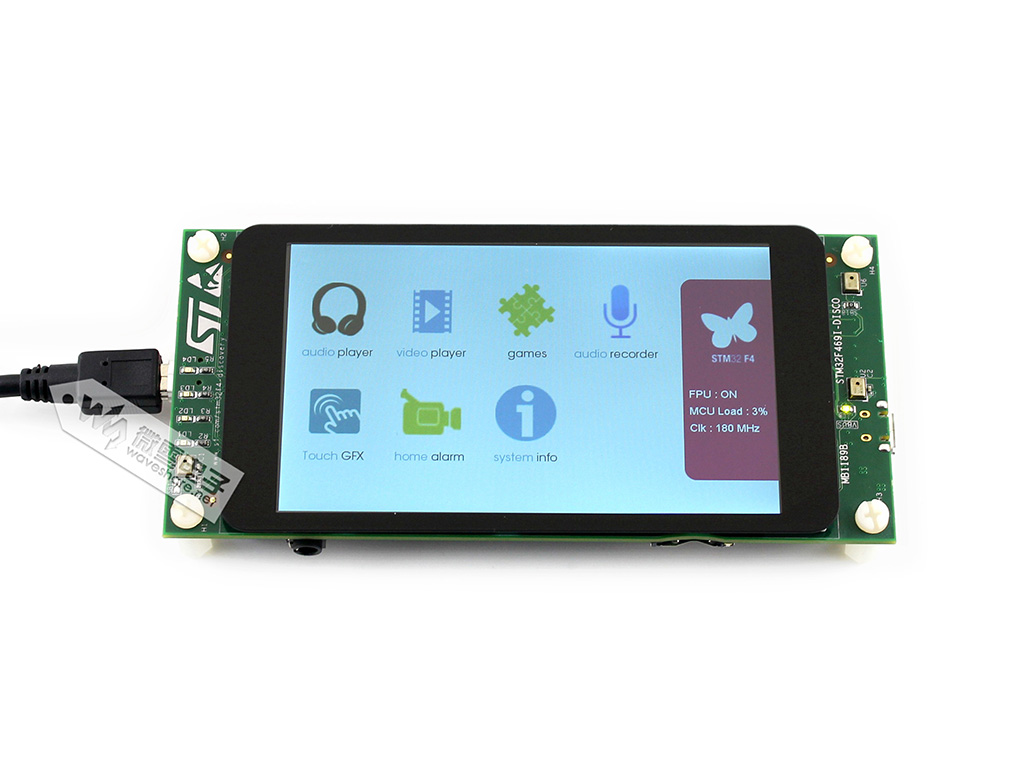

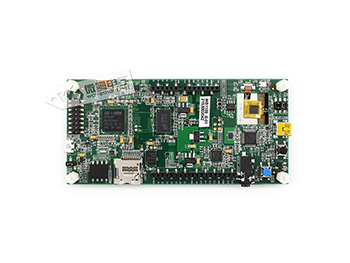

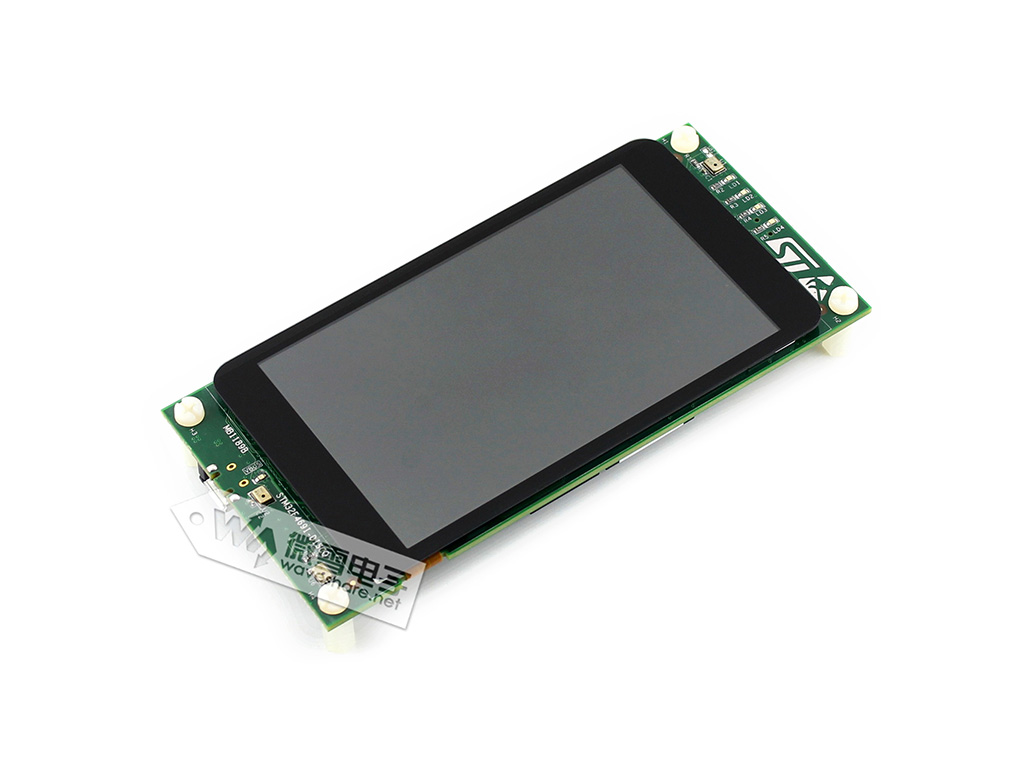

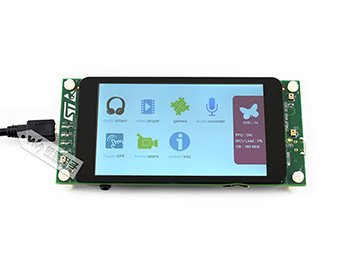

STM32F469I-DISCO 开发板 图一

STM32F469I-DISCO 开发板 图二

STM32F469I-DISCO 开发板 图三

STM32F469I-DISCO 开发板 图四

外形尺寸

配置清单

特别注意: 本开发板为原装标配产品,没有配送USB (mini)连接线,如需USB (mini)连接线请另行采购。

  1. STM32F469I-DISCO x 1
