STM32F411E-DISCO

主要参数
型号 STM32F411E-DISCO
SKU 11579 库存
规格   品牌 ST
备注 32F411EDISCOVERY
价格表
对应数量 @1set @2set @3set @4set
税前 138 133 130 128
含5%普税 144.9 139.65 136.5 134.4
含16%增税 160.08 154.28 150.8 148.48
版权所有,侵权必究。未经许可,不得用于商业用途。

产品简介

The Discovery kit for STM32F411 line helps you to discover the entry level microcontrollers of the STM32 F4 series and to develop your applications easily. It offers everything required for beginners and experienced users to get started quickly.

Based on the STM32F411VET6, it includes an ST-LINK/V2 embedded debug tool, a gyroscope, an e-compass and digital microphone ST MEMs, an audio DAC with an integrated class D speaker driver, an OTG micro-AB connector, LEDs and push-buttons.

STM32F411E-DISCO是ST公司推出的一款针对STM32F411设计的开发板,可帮助您探索STM32F4系列,轻松开发自己的应用,还提供有完善的资料能帮助所有初学者和有经验开发人员快速上手。

STM32F411E-DISCO基于STM32F411VET6设计,集成了ST-LINK/V2仿真下载器(但仅对外提供SWD接口),免除您另外采购仿真器或下载器的麻烦;还增添了陀螺仪、电子罗盘、数字麦克风、音频解码芯片、OTG USB、 LED和按钮等外设,方便您学习开发。

【特点】
  • STM32F411VET6 microcontroller featuring 512 KB of Flash memory, 128 KB of RAM in an LQFP100 package
  • On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
  • Board power supply: through USB bus or from an external 5 V supply voltage
  • External application power supply: 3 V and 5 V
  • L3GD20: ST MEMS motion sensor 3-axis digital output gyroscope
  • LSM303DLHC: ST MEMS system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
  • MP45DT02: ST MEMS audio sensor, omnidirectional digital microphone
  • CS43L22, audio DAC with integrated class D speaker driver
  • Eight LEDs:
    • LD1 (red/green) for USB communication
    • LD2 (red) for 3.3 V power on
    • Four user LEDs: LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
    • Two USB OTG LEDs: LD7 (green) VBus and LD8 (red) over-current
  • Two push-buttons (user and reset)
  • USB OTG with micro-AB connector
  • Extension header for LQFP100 I/Os for a quick connection to the prototyping board and an easy probing
  • Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32136 for legacy Standard Libraries usage

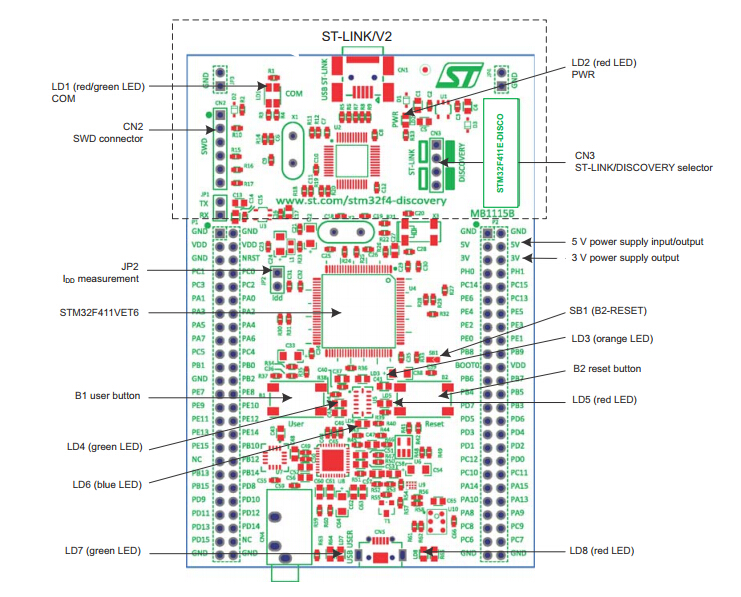

【资源简介图】

开发资料

STM32F411E-DISCO 目前没有配送光盘。
ST官网资料下载链接: www.st.com/web/catalog/tools/FM116/CL1620/SC959/SS1532/LN1848/PF260946

产品图片


STM32F411E-DISCO 带包装正面图

STM32F411E-DISCO 带包装反面图

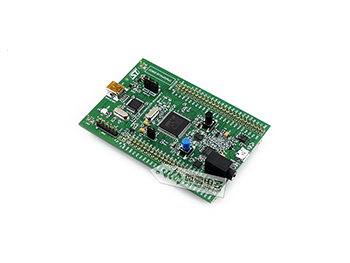

STM32F411E-DISCO 开发板 图一

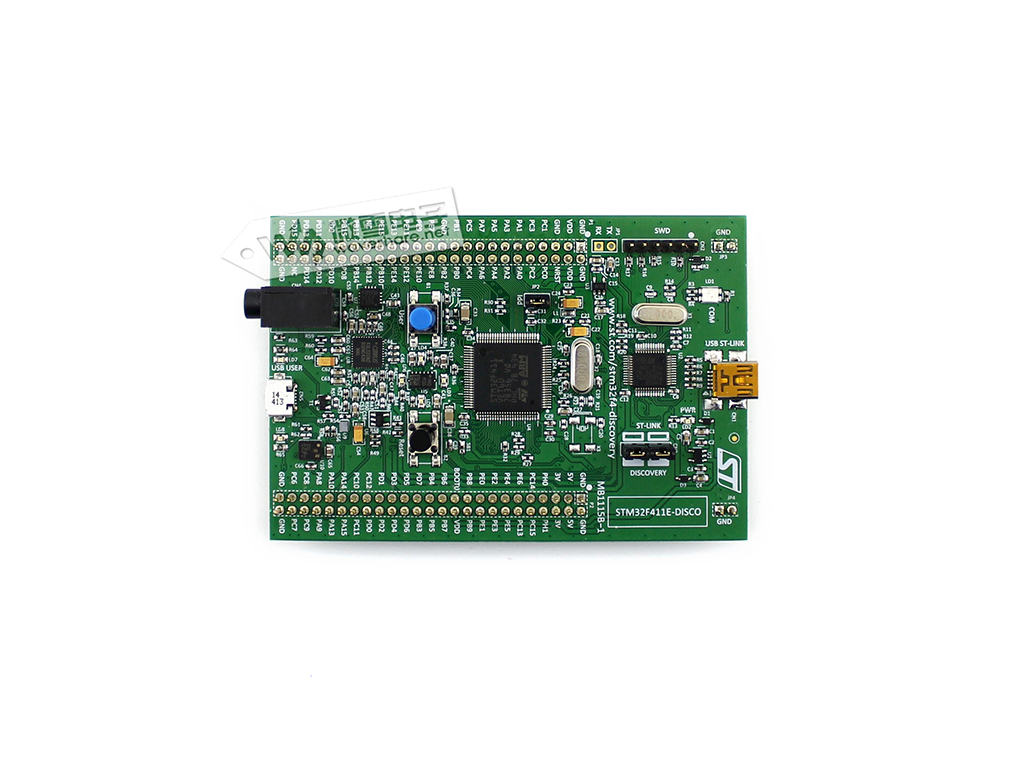

STM32F411E-DISCO 开发板 图二

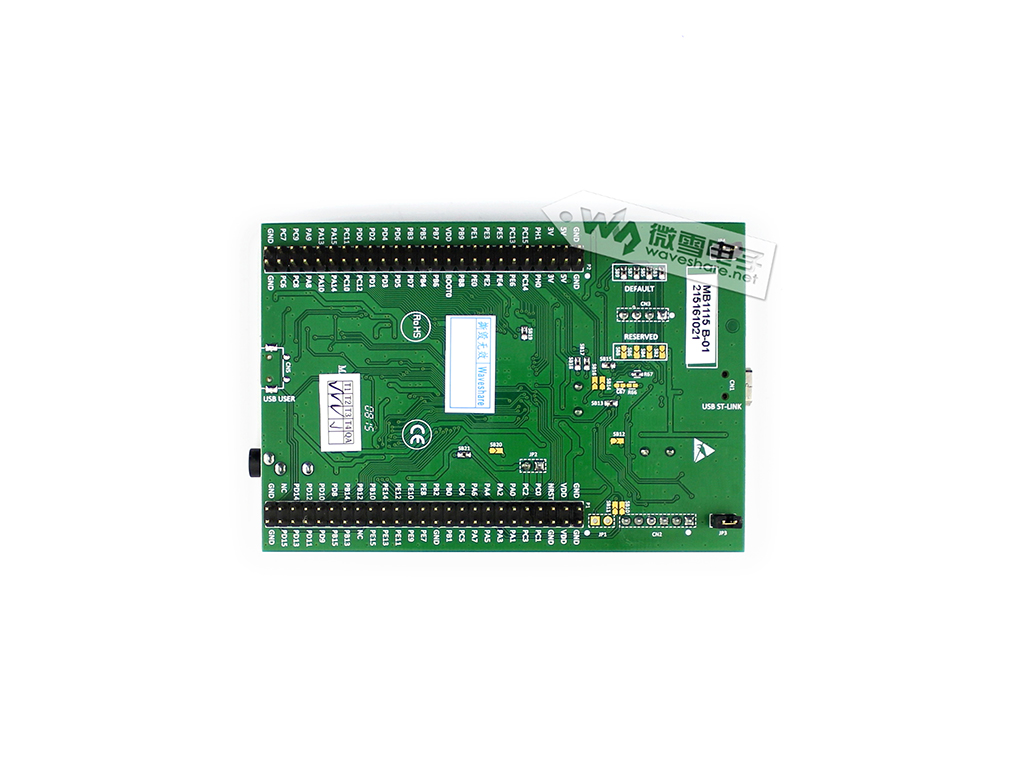

STM32F411E-DISCO 开发板 图三

STM32F411E-DISCO 开发板 图四

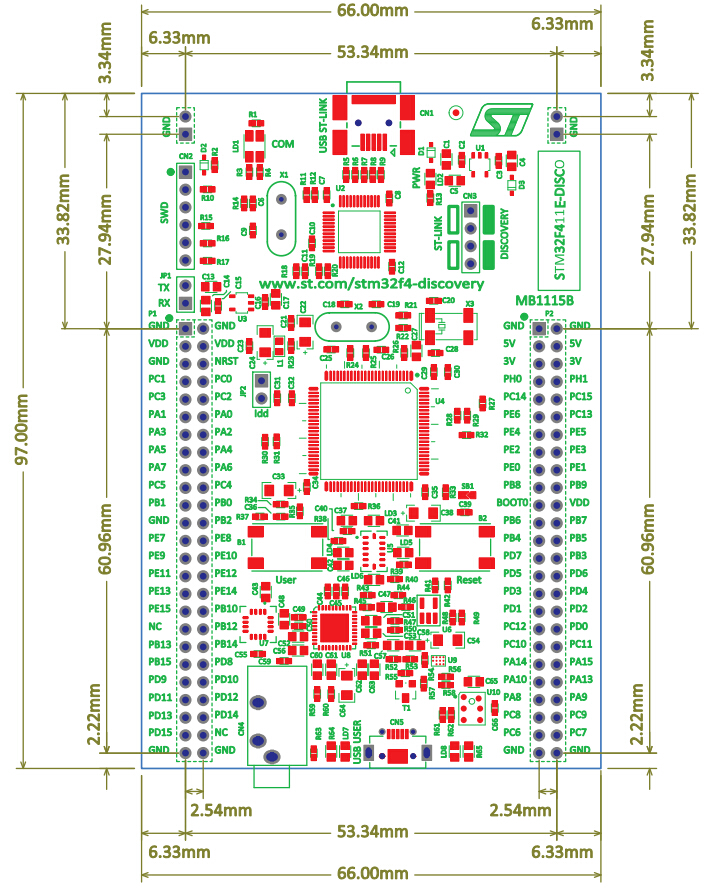

外形尺寸

配置清单

特别注意: 本开发板为原装标配产品,没有配送USB (mini)连接线,如需USB (mini)连接线请另行采购。

  1. STM32F411E-DISCO x 1
