PIC16F87

订购信息

型号 封装 在线定购
PIC16F87-I/P(查看) PDIP18
PIC16F87-I/SO(查看) SOIC18
PIC16F87-I/SS(查看) SSOP20

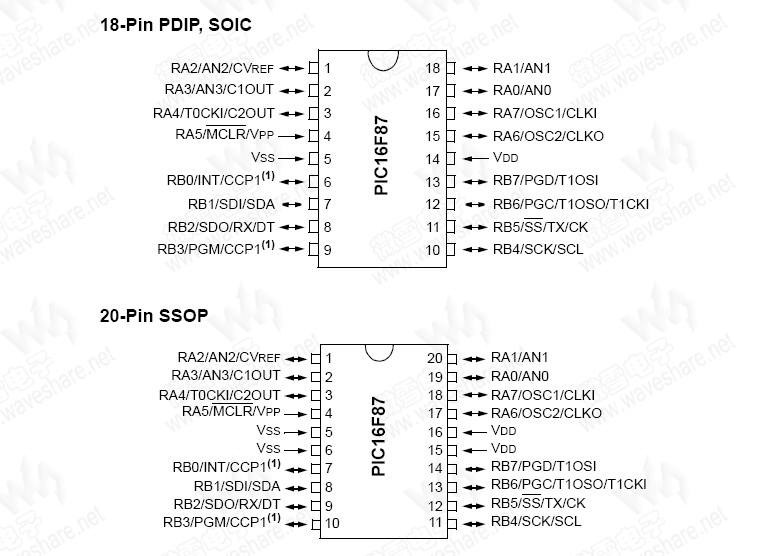

引脚布局

(点击图片看大图)
技术资料—— PIC16F87 PDF技术资料

PIC16F87 概述

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller PIC16F87 packs Microchip’s powerful PIC® architecture into an 18-pin package and is upwards compatible with the PIC16C7x, PIC16C62xA, PIC16C5X and PIC12CXXX devices. The PIC16F87 features 8MHz internal oscillator, 256 bytes of EEPROM data memory, a capture/compare/PWM, an Addressable USART and 2 Comparators. All of these features make the PIC16F87 ideal for advantage analog / integrated level applications in automotive, industrial, appliances and consumer applications.

PIC16F87 参数
PIC16F87 存储器
Flash (KB)   7
RAM (Bytes)   368
Data EEPROM (bytes)   256
PIC16F87 其他参数
程序存储器类型   Flash
CPU速率 (MIPS)   5
数字通信模块   1-A/E/USART
1-SSP(SPI/I2C)
捕捉/比较/PWM 模块   1 CCP
定时器   2 x 8-bit
1 x 16-bit
比较器   2
工作电压 (V)   2 to 5.5
PIC16F87 封装与引脚
PDIP18, QFN28, SOIC18, SSOP20

PIC16F87 特性

  • 1 PWM 10-bit
  • Wide operating voltage range: 2.0V to 5.5V
