PIC16F72

订购信息

型号 封装 在线定购
PIC16F72-I/SO(查看) SOIC28
PIC16F72-I/SP(查看) SPDIP28
PIC16F72-I/SS(查看) SSOP28

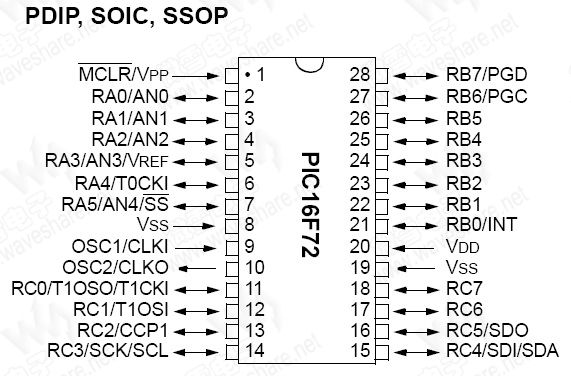

引脚布局

(点击图片看大图)
技术资料—— PIC16F72 PDF技术资料

PIC16F72 概述

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller PIC16F72 packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F72 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, capture/compare/PWM function and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus. All of these features make the PIC16F72 ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

PIC16F72 参数
PIC16F72 存储器
Flash (KB)   3.5
RAM (Bytes)   128
PIC16F72 其他参数
程序存储器类型   Flash
CPU速率 (MIPS)   5
数字通信模块   1-SSP(SPI/I2C)
捕捉/比较/PWM 模块   1 CCP
定时器   2 x 8-bit
1 x 16-bit
ADC   5 ch, 8-bit
工作电压 (V)   2 to 5.5
PIC16F72 封装与引脚
QFN28, SOIC28, SPDIP28, SSOP28

PIC16F72 特性

  • 25mA sink/source per I/O
  • Capture/Compare
