OP279

芯片信息

型号 封装 在线定购
OP279GSZ(查看) SOIC8

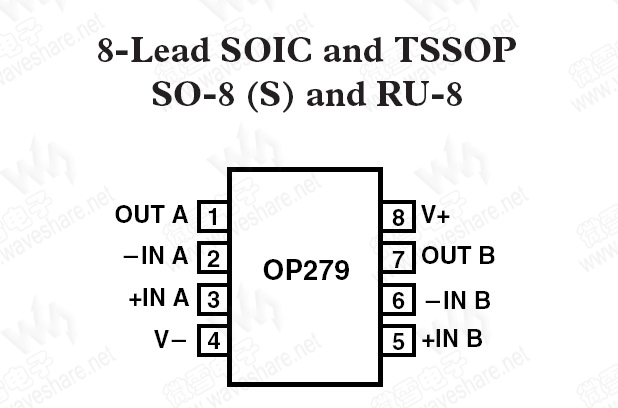

引脚布局

(点击图片看大图)
技术资料—— OP279 PDF技术资料

OP279 概述

The OP279 is a dual rail-to-rail, high output current, single supply amplifier. It is designed for low voltage applications that require either current or capacitive load drive capability. The OP279 can sink and source currents of ±80 mA (typ) and is stable with capacitive loads to 10 nF.

Applications with the benefit from the OP279's high output current include driving headphones, displays, transformers, and power transistors. The powerful output is combined with a unique input stage that maintains very low distortion with wide common-mode range, even in single supply designs.

The OP279 can be used as a buffer to provide much greater drive capability than can usually be provided by CMOS outputs. CMOS ASICs and DACs often have outputs that can swing to both the positive supply and ground, but are incapable of driving greater than a few milliamps.

The OP279 is available in 8-pin plastic DIP and SO-8 surface mount packages. They are specified over the industrial (-40°C to +80°C) temperature range.

OP279 参数
OP279 基本参数
SR   3 V/µs
GBW   5 MHz
Vos   4 mV
Ib   300 nA
OP279 其他特性
工作电压   ±4.5V~12V
Channels   2
工作温度   −40℃ ~ 85℃
OP279 封装与引脚
SOIC8

OP279 特性

  • Rail-to-Rail Inputs and Outputs
  • High Output Current: ±60 mA
  • Single Supply: 5 V to 12 V
  • Wide Bandwidth: 5 MHz
  • High Slew Rate: 3 V/µs
  • Low Distortion: 0.01%
  • Unity-Gain Stable
  • No Phase Reversal
  • Short-Circuit Protected
  • Drives Capacitive Loads: 10 nF

OP279 应用

  • Multimedia
  • Telecom
  • DAA Transformer Driver
  • LCD Driver
  • Low Voltage Servo Control
  • Modems
  • FET Drivers
