NUCLEO-F411RE (套餐B)

主要参数
型号 NUCLEO-F411RE (套餐B)
SKU 11262 库存
规格   品牌 Waveshare
备注 STM32 Arduino mbed 通用外围模块套件
价格表
对应数量 @1set @2set @3set @4set
税前 313 309 306 304
含5%普税 328.65 324.45 321.3 319.2
含16%增税 363.08 358.44 354.96 352.64
版权所有,侵权必究。未经许可,不得用于商业用途。
NUCLEO
推荐购买XNUCLEO-F411RE (套餐B),兼容,但性能更好。

产品简介

【自我介绍】
我是一套用于评估NUCLEO-F411RE的开发套件,配套多种外扩功能模块,方便测试NUCLEO的各种外设。
我适合有以下需求者:
  • 观望的小白(想学习STM32,使用NUCLEO,但纠结于NUCLEO开发板资源太少)
  • 激进的新手(想玩转各种片上资源,却不想慢慢磨)
  • 懒惰的大虾(完全有能力自己做外围,但很懒,只想用现成的)
  • 苦逼的工程师(目标只有一个:快速搭建产品原型,缩短开发周期)
【关键部件】
  • NUCLEO-F411RE(老大履历太丰富,岂敢在这括号内写完,简介见下方)
  • Accessory Shield(0.96寸OLED、高精度实时时钟、三轴加速度计、温度传感器及多彩LED等等)
  • Analog Test Shield(AD采集及DA输出测试)
  • Music Shield(音频解码)

初识NUCLEO-F411RE

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.

The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

NUCLEO-F411RE 是ST公司推出的一款针对STM32F4系列设计的Cortex-M4开发板,具有 mbed 功能,支持Arduino。同时还提供 ST Morpho 扩展排针,可连接微控制器的所有周边外设。

开发板基于STM32F411RET6设计,开发板还集成了ST-LINK/V2-1仿真下载器(但仅对外提供SWD接口),免除您另外采购仿真器或下载器的麻烦。并且具备Arduino接口,可接入 Arduino 巨大生态系统的各种 Shield 扩展板,让您能够轻松快速增加特殊功能。

ST提供丰富的示例程序,让您更快速的入门STM32F4单片机。一起来释放您的创造力吧!

特点

  • STM32 microcontroller with LQFP64 package
    • STM32F411RET6 ( 512K FLASH )
  • Two types of extension resources
    • Arduino Uno Revision 3 connectivity
    • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
  • mbed-enabled (mbed.org)
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
    • selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
    • USB VBUS or external source(3.3 V, 5 V, 7 - 12 V)
    • Power management access point
  • Three LEDs
    • USB communication (LD1), user LED (LD2), power LED (LD3)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
    • Virtual Com port
    • Mass storage
    • Debug port
  • Comprehensive free software HAL library including a variety of software examples
  • Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs

图解NUCLEO-F411RE

产品图片

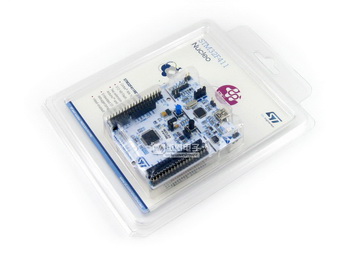

NUCLEO-F411RE 带包装正面图
