NUCLEO-F410RB STM32F410RBT6开发板

板载ST-LINK/V2,支持mbed功能,Arduino扩展

本产品未上架

型号
NUCLEO-F410RB
SKU
11496
  • 产品详情
  • 配置清单
加入购物车

产品简介

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.

The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer. The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

NUCLEO-F410RB是ST公司推出的一款针对STM32F4系列设计的Cortex-M4开发板,支持mbed ,兼容Arduino,同时还提供 ST Morpho 扩展排针,可连接微控制器的所有周边外设。

开发板基于STM32F410RBT6设计,开发板还集成了ST-LINK/V2-1仿真下载器(但仅对外提供SWD接口),免除您另外采购仿真器或下载器的麻烦。并且具备Arduino接口,可接入 Arduino 巨大生态系统的各种 Shield 扩展板,让您能够轻松快速增加特殊功能。

ST提供丰富的示例程序,让您更快速的入门STM32F4单片机。一起来释放您的创造力吧!

【特点】
  • STM32 microcontroller with LQFP64 package
  • Two types of extension resources
    • Arduino Uno Revision 3 connectivity
    • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
  • mbed-enabled (http://mbed.org)
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
    • selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
    • USB VBUS or external source(3.3 V, 5 V, 7 - 12 V)
    • Power management access point
  • Three LEDs
    • USB communication (LD1), user LED (LD2), power LED (LD3)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
    • Virtual Com port
    • Mass storage
    • Debug port
  • Supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs
【资源简介图】

开发资料

NUCLEO-F410RB目前没有配送光盘。
ST官网资料下载链接: www.st.com/web/catalog/tools/FM116/CL1620/SC959/SS1532/LN1847/PF262518

产品图片

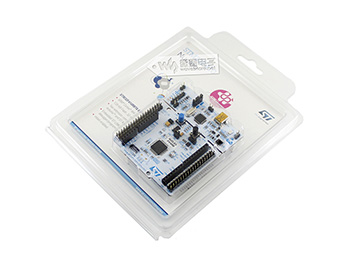

NUCLEO-F410RB带包装正面图

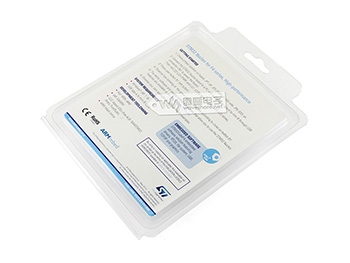

NUCLEO-F410RB带包装反面图

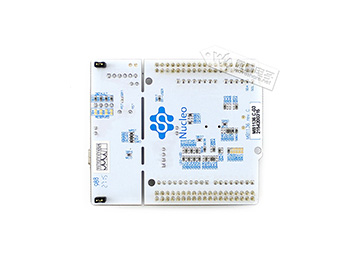

NUCLEO-F410RB开发板 图一

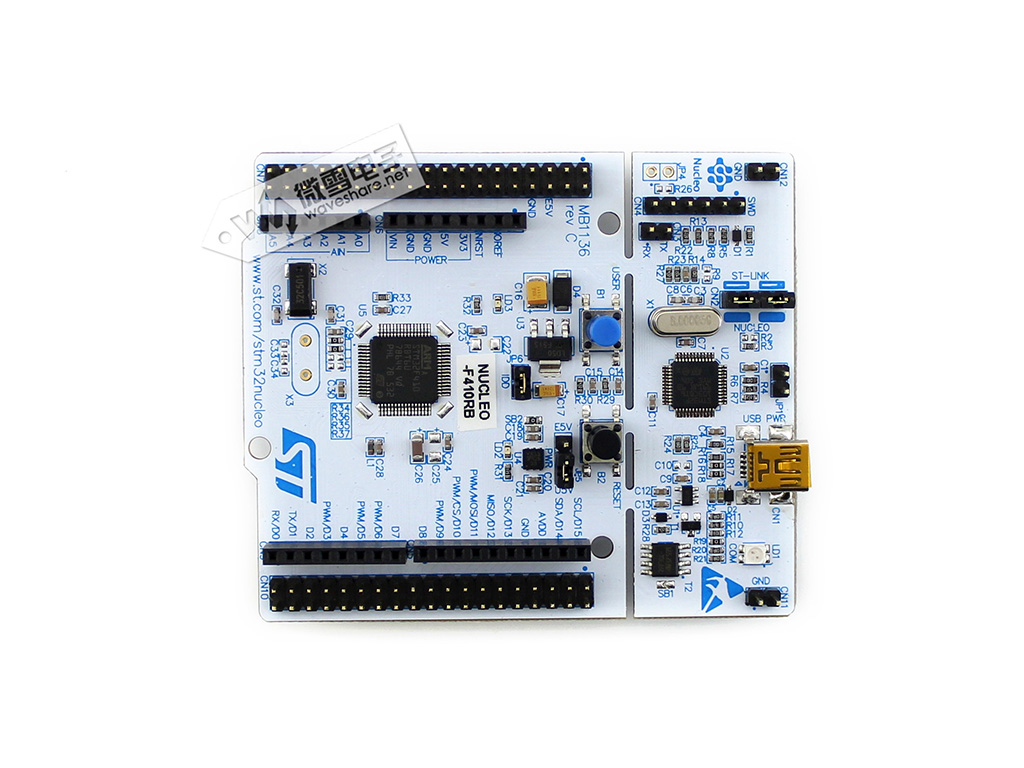

NUCLEO-F410RB开发板 图二

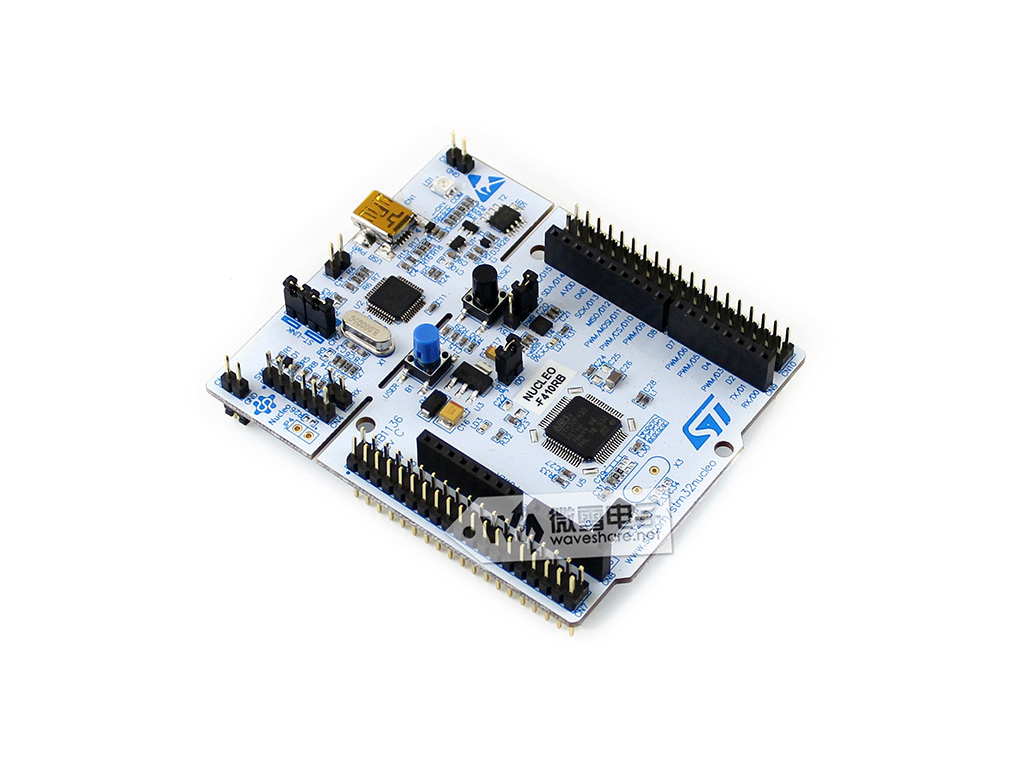

NUCLEO-F410RB开发板 图三

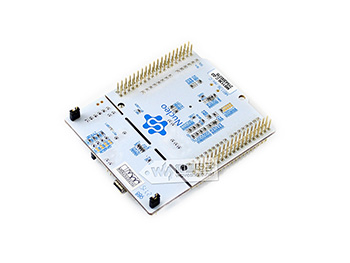

NUCLEO-F410RB开发板 图四

外形尺寸

配置清单

特别注意: 本开发板为原装标配产品,没有配送USB (mini)连接线,如需USB (mini)连接线请另行采购。

  1. NUCLEO-F410RB x 1
