M25P80

芯片信息

型号 封装 在线定购
M25P80-VMN6TP(查看) SO8N
M25P80-VMW6G(查看) SO8W
M25P80-VMW6TG(查看) SO8W

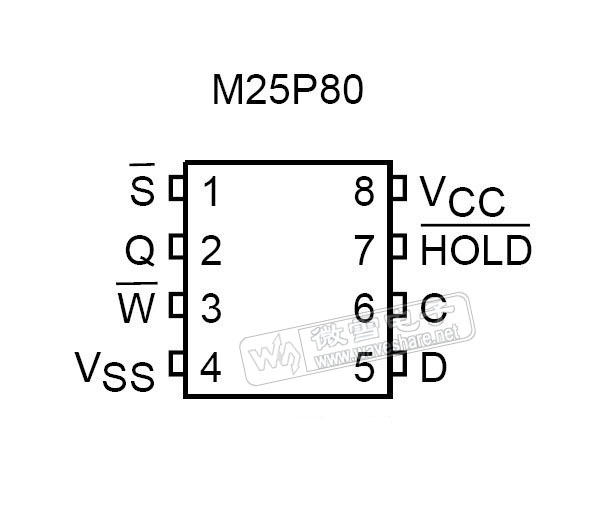

引脚布局

(点击图片看大图)
技术资料—— M25P80 PDF技术资料
M25P80 参数
M25P80 基本参数
类型 串行内存
容量 (Mb) 8
工作电压 (V) 2.7-3.6
M25P80 其他特性
宽度 x1
接口 SPI
速度 (MHz) 75
页大小 (bytes) 256
温度范围 -40°C to 85°C
ROHS YES
M25P80 封装与引脚
SO8W, SO8N, VDFPN8, UFDFPN8, PDIP8

M25P80 概述

The M25P80 is an 8 Mbit (1 Mbit × 8) Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The M25P80 is organized as 16 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 4096 pages, or 1,048,576 bytes. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.

In order to meet environmental requirements, the M25P80 is RoHS compliant packages, which is Lead-free.

M25P80 特性

  • SPI bus compatible serial interface.
  • 75 MHz Clock rate (maximum).
  • 2.7 V to 3.6 V single supply voltage.
  • 8 Mbit of Flash memory.
  • Page Program (up to 256 bytes) in 0.64 ms(typical).
  • Sector Erase (512 Kbit) in 0.6 s (typical).
  • Bulk Erase (8 Mbit) in 8 s (typical).
  • Hardware Write protection: protected area size defined by three non-volatile bits (BP0, BP1 and BP2).
  • Deep Power-down mode 1 μA (typical).
  • Electronic signatures
    - JEDEC Standard two-byte signature(2014h).
    - Unique ID code (UID) +16 bytes of CFI data.
    - RES instruction one-byte signature (13h)for backward compatibility.
  • More than 100 000 Program/Erase cycles per sector.
  • More than 20 years' data retention.
  • Packages
    - RoHS compliant.
  • Automotive Certified Parts Available.
