LPC2366

芯片信息

型号 封装 在线定购
LPC2366FBD100(查看) LQFP100

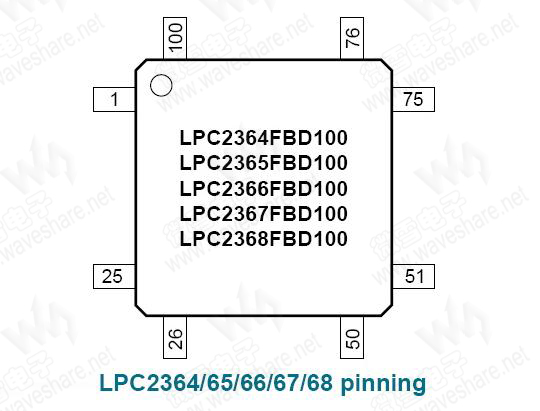

引脚布局

(点击图片看大图)
技术资料—— LPC2366 PDF技术资料

LPC2366 概述

The LPC2366 microcontroller is based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with 256 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical performance in interrupt service routines and DSP algorithms, this increases performance up to 30 pct over Thumb mode. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 pct with minimal performance penalty.

The LPC2366 is ideal for multi-purpose serial communication applications. It incorporates a 10/100 Ethernet Media Access Controller (MAC), USB full speed device with 4 kB of endpoint RAM, four UARTs, two CAN channels, an SPI interface, two Synchronous Serial Ports (SSP), three I2C interfaces, and an I2S interface. This blend of serial communications interfaces combined with an on-chip 4 MHz internal oscillator, SRAM of up to 32 kB, 16 kB SRAM for Ethernet, 8 kB SRAM for USB and general purpose use, together with 2 kB battery powered SRAM make the LPC2366 very well suited for communication gateways and protocol converters. Various 32-bit timers, an improved 10-bit ADC, 10-bit DAC, one PWM unit, a CAN control unit, and up to 70 fast GPIO lines with up to 12 edge or level sensitive external interrupt pins make the LPC2366 particularly suitable for industrial control and medical systems.

LPC2366 参数
LPC2366 存储器
FLASH (kB) 256
RAM (kB) 58
LPC2366 性能参数
fmax (MHz) 72
I/Opins 70
UART 4
I²C 3
I²S 1
SPI 1
SSP 2
ADC 6
DAC 1
定时器 4
PWM 6
I/O 电压 (V) 3.3
CPU 电压 (V) 3.3
LPC2366 封装与引脚
LQFP100
