LPC1343

芯片信息

型号 封装 在线定购
LPC1343FBD48(查看) LQFP48
LPC1343FHN33(查看) HVQFN33

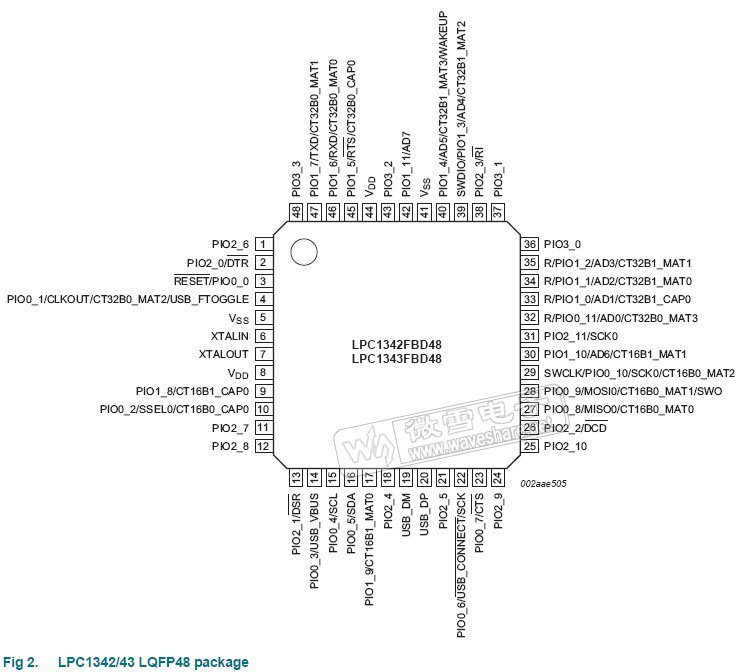

引脚布局

(点击图片看大图)
技术资料—— LPC1343 PDF技术资料
LPC1343 参数
LPC1343 存储器
Flash (KB) 32
RAM (kB) 8
LPC1343 其他参数
fmax (MHz) 72
I/Opins 28-42
UART 1
I²C 1
I²S -
SPI 1
SSP 1
ADC 8
DAC -
定时器 5
PWM 11
I/O 电压 (V) 3.3
CPU 电压 (V) 3.3
LPC1343 封装与引脚
LQFP48,HVQFN33

LPC1343 概述

The LPC1343 are ARM Cortex-M3 based microcontrollers for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration.

The LPC1343 operate at CPU frequencies of up to 72 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching.

LPC1343 特性

  • 10-bit ADC with input multiplexing among 8 pins
  • ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
  • ARM Cortex-M3 processor, running at frequencies of up to 72 MHz
  • 32 kB on-chip flash programming memory.
  • 8 kB SRAM.
  • Code Read Protection (CRP) with different security levels
  • GPIO pins can be used as edge and level sensitive interrupt sources
  • High-current output driver (20 mA) on one pin
  • High-current sink drivers (20 mA) on two I²C-bus pins in Fast-mode Plus
  • In-Application Programming (IAP)
  • In-System Programming (ISP)
  • Integrated oscillator with an operating range of 1 MHz to 25 MHz
  • Power-On Reset (POR)
  • Programmable watchdog oscillator with a frequency range of 7.8 kHz to 1.8 MHz
  • Serial Wire Debug and Serial Wire Trace port
  • Single power supply (2.0 V to 3.6 V)
  • Three reduced power modes: Sleep, Deep-sleep, and Deep power-down
  • Unique device serial number for identification
  • USB 2.0 full-speed device controller
