LPC11C24

订购信息

型号 封装 在线定购
LPC11C24FBD48/301(查看) LQFP48

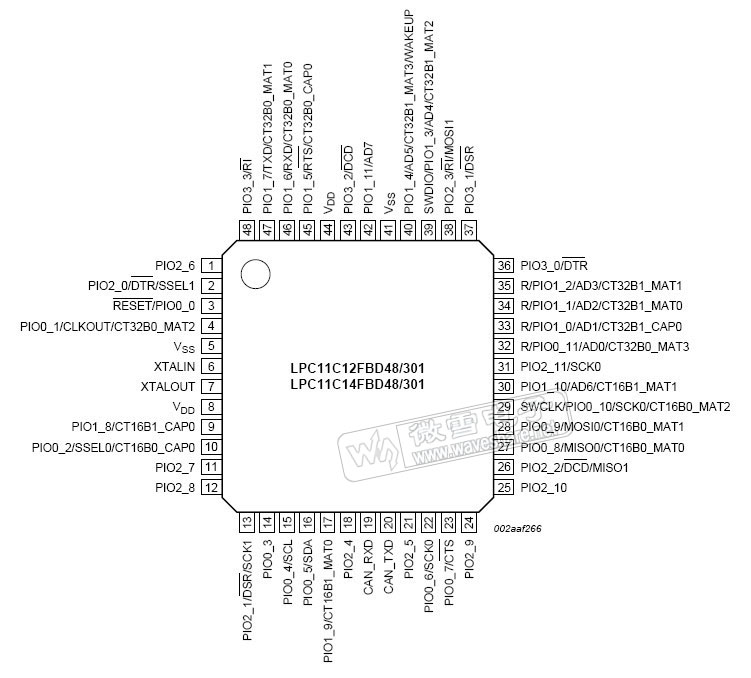

引脚布局

(点击图片看大图)
技术资料—— LPC11C24 PDF技术资料
LPC11C24 参数
LPC11C24 存储器
Flash (KB) 32
RAM (kB) 8
LPC11C24 其他参数
fmax (MHz) 50
I/Opins 36
UART 1
I²C 1
I²S -
SPI 2
SSP 2
ADC 8
DAC -
定时器 5
PWM 11
I/O 电压 (V) 3.3
CPU 电压 (V) 3.3
LPC11C24 封装与引脚
LQFP48

LPC11C24 概述

The LPC11C24 devices are an ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.

The LPC11C24 devices operate at CPU frequencies of up to 50 MHz.

LPC11C24 特性

  • System
    • ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.
    • ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).
    • Serial Wire Debug.
    • System tick timer.
  • Memory
    • 32 kB on-chip flash programming memory.
    • 8 kB SRAM.
    • In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software.
    • Flash ISP commands can be issued via UART or C_CAN.
  • Digital peripherals
    • General Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors.
    • 36 GPIO pins on the LPC11C24 parts.
    • GPIO pins can be used as edge and level sensitive interrupt sources.
    • High-current output driver (20 mA) on one pin.
    • High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus.
    • Four general purpose counter/timers with a total of four capture inputs and 12 match outputs.
    • Programmable WatchDog Timer (WDT)
  • Analog peripherals
    • 10-bit ADC with input multiplexing among 8 pins.
