DAC813

订购信息

型号 封装 在线定购
DAC813JU(查看) SOIC28

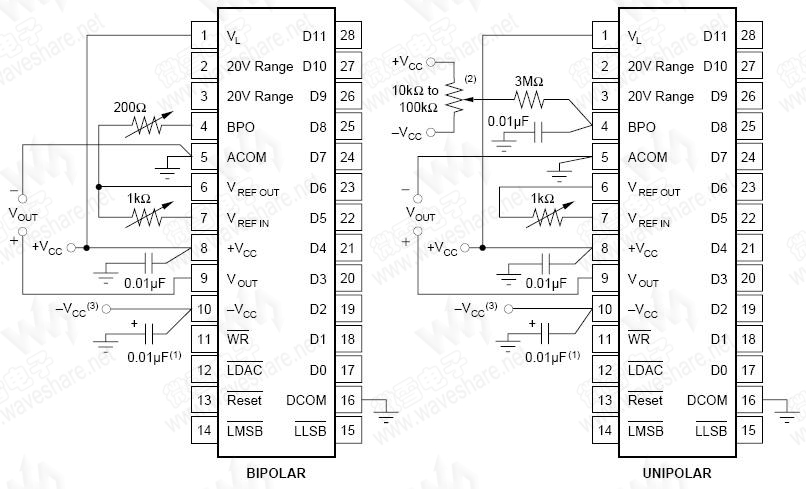

引脚布局

(点击图片看大图)
技术资料—— DAC813 PDF技术资料

DAC813 概述

The DAC813 is a complete monolithic 12-bit digital-to-analog converter with a flexible digital interface. The DAC813 includes a precision +10V reference, interface control logic, double-buffered latch and a 12-bit D/A converter with voltage output operational amplifier. Fast current switches and laser-trimmed thin-film resistors provide a highly accurate, fast D/A converter.

The DAC813 is available in six performance grades and three package types.

DAC813 参数
DAC813 基本参数
分辨率(Bits)   12
采样率   167 KSPS
DAC813 其他特性
工作电压(V)   11.4-16.5
通道数   1
DAC813 封装与引脚
SOIC28

DAC813 特性

  • ±1/2LSB NONLINEARITY OVER TEMPERATURE
  • GUARANTEED MONOTONIC OVER TEMPERATURE
  • LOW POWER: 270mW typ
  • DIGITAL INTERFACE DOUBLE BUFFERED: 12 AND 8 + 4 BITS
  • SPECIFIED AT ±12V AND ±15V POWER SUPPLIES
  • RESET FUNCTION TO BIPOLAR ZERO
  • 0.3" WIDE DIP AND SO PACKAGES
