AD7416

订购信息

型号 封装 在线定购
AD7416ARZ(查看) SOIC8

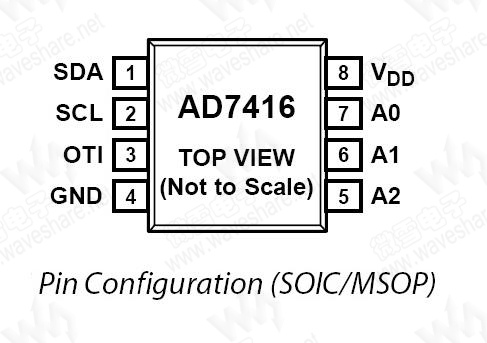

引脚布局

(点击图片看大图)
技术资料—— AD7416 PDF技术资料

AD7416 概述

The AD7416 is an 10-bit on-chip temperature sensor that can operate from a single 2.7 V to 5.5 V power supply. The AD7416 is a temperature-monitoring only device in an 8-lead package.

An I²C® compatible serial interface allows the AD7416 registers to be written to and read back. The three LSBs of the AD7416 serial bus address can be selected, which allows up to eight AD7416 devices to be connected to a single bus.

The AD7416 is available in 8-lead SOIC and MSOP packages.

AD7416 参数
AD7416 基本参数
分辨率   10 Bits
工作电压   +2.7V to +5.5V
AD7416 其他特性
测温范围   -40℃~+125℃
接口   I²C, 串行
AD7416 封装与引脚
SOIC8, MSOP8

AD7416 特性

  • On-chip temperature sensor:
    −40°C to +125°C
  • On-chip track-and-hold
  • Overtemperature indicator
  • Wide operating supply range: 2.7 V to 5.5 V
  • I²C-compatible serial interface
  • Selectable serial bus address allows connection of up to 8 AD7416 devices to a single bus
  • AD7416 is a superior replacement for LM75

AD7416 应用

  • Data acquisition with ambient temperature monitoring
  • Industrial process control
  • Automotive
  • Battery-charging applications
  • Personal computers
