AT91SAM9261S

订购信息

型号 封装 在线定购
AT91SAM9261SB-CU(查看) LFBGA217

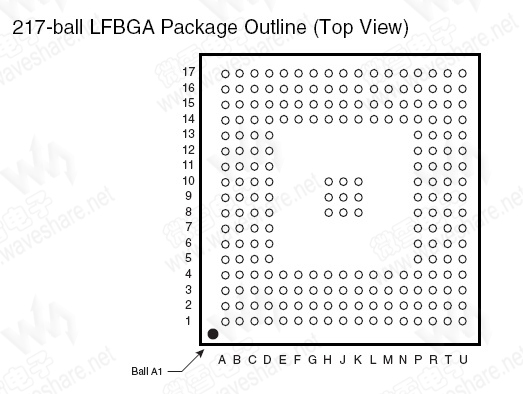

引脚布局

(点击图片看大图)
技术资料—— AT91SAM9261S PDF技术资料

AT91SAM9261S 概述

The AT91SAM9261S is a complete system-on-chip built around the ARM926EJ-S ARM Thumb processor with an extended DSP instruction set and Jazelle Java accelerator. The AT91SAM9261S achieves 210 MIPS at 190 MHz.

The AT91SAM9261S is an optimized host processor for applications with an LCD display. Its integrated LCD controller supports BW and up to 16M color, active and passive LCD displays. The 16 Kbyte integrated SRAM can be configured as a frame buffer minimizing the impact for LCD refresh on the overall processor performance. The External Bus Interface incorporates controllers for synchronous DRAM (SDRAM) and Static memories and features specific interface circuitry for CompactFlash and NAND Flash.

The AT91SAM9261S integrates a ROM-based Boot Loader supporting code shadowing from, for example, external DataFlash® into external SDRAM. The software controlled Power Management Controller (PMC) keeps system power consumption to a minimum by selectively enabling/disabling the processor and various peripherals and adjustment of the operating frequency.

The AT91SAM9261S also benefits from the integration of a wide range of debug features including JTAG-ICE, a dedicated UART debug channel (DBGU) and an embedded real time trace. This enables the development and debug of all applications, especially those with real-time constraints.

AT91SAM9261S 参数
AT91SAM9261S 系统
CPU ARM926EJ-S, 190MHz
5-layer AHB Matrix
Debug JTAG, ETM
Cache Memory (Bytes) 2x16K
MMU/MPU MMU
AT91SAM9261S 存储器
Flash (Bytes) -
SRAM (Bytes) 16K
SDRAM Interface 1
External Bus Interface 1
NAND Flash & ECC 1/-
Peripheral DMA Channels 19
AT91SAM9261S 性能参数
LCD Controller 1
USB Host 2xFS
RTC/RTT -/1
I/O Pins 96
Enhanced USART 3
USART/DBGU -/1
SPI 2
TWI 1
SSC 3
MCI 1
USB Device FS
16-bit Timers 3
Period Interval Timer 1
Watchdog Timer 1
Power-On-Reset 2
Crystal Oscillator/PLL 2/2
I/O Voltage Domain (V) 1.8/3.3
In-System Programming Y
Single Supply N
AT91SAM9261S 封装与引脚
LFBGA217
