TPS62200

订购信息

型号 封装 在线定购
TPS62200DBVR(查看) SOT-23-5

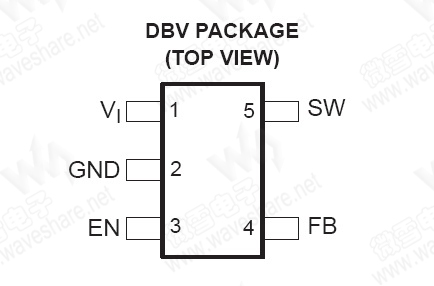

引脚布局

(点击图片看大图)
技术资料—— TPS62200 PDF技术资料

TPS62200 概述

The TPS62200 is a high-efficiency synchronous step-down converter ideally suited for portable systems powered by 1-cell Li-Ion or 3-cell NiMH/NiCd batteries. The TPS62200 is also suitable to operate from a standard 3.3-V or 5-V voltage rail.

With an output voltage range of 6 V down to 0.7 V and up to 300 mA output current, the TPS62200 is ideal to power low voltage DSPs and processors used in PDAs, pocket PCs, and smart phones. Under nominal load current, the TPS62200 operates with a fixed switching frequency of typically 1 MHz.

TPS62200 参数
TPS62200 基本参数
Vin (V)   2.5~6
Vout (V)   0.7~6
TPS62200 其他特性
可调输出端   1
Iq (Typ)(mA)   0.015
TPS62200 封装与引脚
SOT-23-5

TPS62200 特性

  • High Efficiency Synchronous Step-Down Converter With up to 95% Efficiency
  • 2.5-V to 6-V Input Voltage Range
  • Adjustable Output Voltage Range From 0.7 V to VI
  • Up to 300 mA Output Current
  • 1-MHz Fixed Frequency PWM Operation
  • Highest Efficiency Over Wide Load Current Range Due to Power Save Mode
  • 15-µA Typical Quiescent Current
  • Soft Start
  • 100% Duty Cycle Low-Dropout Operation
  • Dynamic Output-Voltage Positioning
  • Available in a 5-Pin SOT23 Package

TPS62200 应用

  • PDAs and Pocket PC
  • Cellular Phones, Smart Phones
  • Low Power DSP Supply
  • Digital Cameras
  • Portable Media Players
  • Portable Equipment
