TLV2541

订购信息

型号 封装 在线定购
TLV2541CDGKR(查看) MSOP8
TLV2541IDGKR(查看) MSOP8
TLV2541IDR(查看) SOIC8

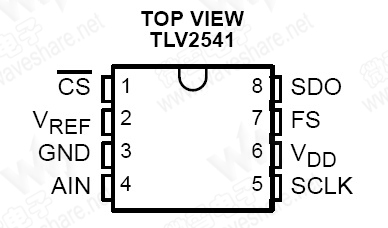

引脚布局

(点击图片看大图)
技术资料—— TLV2541 PDF技术资料

TLV2541 概述

The TLV2541 are high performance, 12-bit, low power, miniature, CMOS analog-to-digital converters (ADC). The TLV2541 operates from a single 2.7-V to 5.5-V supply.

The TLV2541 are designed to operate with very low power consumption. The power saving feature is further enhanced with an autopower-down mode. The TLV2541 features a high-speed serial link to modern host processors with SCLK up to 20 MHz. The maximum SCLK frequency is dependent upon the mode of operation. The TLV2541 uses the built-in oscillator as the conversion clock, providing a 3.5-µs conversion time.

TLV2541 参数
TLV2541 基本参数
分辨率(Bits)   12
采样速率(max)   200 kSPS
TLV2541 其他特性
工作电压(V)   2.7~5.5
输入通道数   1
TLV2541 封装与引脚
MSOP8, SOIC8

TLV2541 特性

  • Maximum Throughput: 140/200 KSPS
  • Built-In Conversion Clock
  • INL/DNL: ±1 LSB Max, SINAD: 72 dB, SFDR: 85 dB, fi = 20 kHz
  • SPI/DSP-Compatible Serial Interface
  • Single Supply: 2.7 Vdc to 5.5 Vdc
  • Rail-to-Rail Analog Input With 500 kHz BW
  • TLV2541: Single Channel Input
  • Low Power With Autopower Down
    • Operating Current: 1 mA at 2.7 V, 1.5 mA at 5 V
    • Autopower Down: 2 µA at 2.7 V, 5 µA at 5 V
  • Small 8-Pin MSOP and SOIC Packages
