TLC7226

芯片信息

型号 封装 在线定购
TLC7226CN(查看) PDIP20

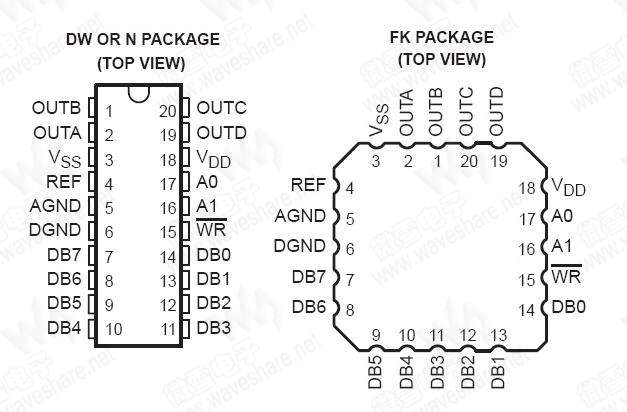

引脚布局

(点击图片看大图)
技术资料—— TLC7226 PDF技术资料

TLC7226 概述

The TLC7226 consist of four 8-bit voltage-output digital-to-analog converters (DACs) with output buffer amplifiers and interface logic on a single monolithic chip.

The TLC7226 performance is specified for input reference voltages from 2 V to VDD – 4 V with dual supplies. The voltage mode configuration of the DACs allows the TLC7226 to be operated from a single power supply rail at a reference of 10 V.

TLC7226 参数
TLC7226 基本参数
分辨率(Bits)   8
采样率   143 KSPS
TLC7226 其他特性
工作电压(V)   11.4-16.5
通道数   4
TLC7226 封装与引脚
PDIP20, SOIC20

TLC7226 特性

  • Four 8-Bit D/A Converters
  • Microprocessor Compatible
  • TTL/CMOS Compatible
  • Single Supply Operation Possible
  • CMOS Technology

TLC7226 应用

  • Process Control
  • Automatic Test Equipment
  • Automatic Calibration of Large System Parameters, e.g. Gain/Offset
