TLC5620

芯片信息

型号 封装 在线定购
TLC5620CN(查看) PDIP14

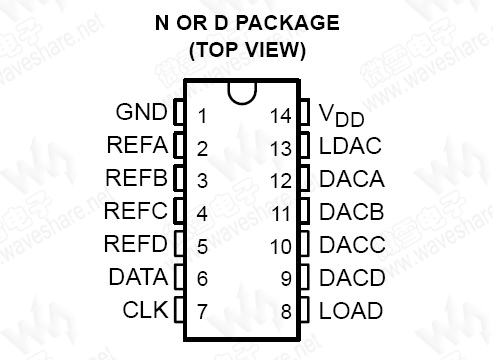

引脚布局

(点击图片看大图)
技术资料—— TLC5620 PDF技术资料

TLC5620 概述

The TLC5620 are quadruple 8-bit voltage output digital-to-analog converters (DACs) with buffered reference inputs (high impedance). The TLC5620 produce an output voltage that ranges between either one or two times the reference voltages and GND, and the TLC5620 are monotonic. The TLC5620 is simple to use, running from a single supply of 5 V. A power-on reset function is incorporated to ensure repeatable start-up conditions.

TLC5620 参数
TLC5620 基本参数
分辨率(Bits)   8
采样率   48 KSPS
TLC5620 其他特性
工作电压(V)   4.75-5.25
通道数   4
TLC5620 封装与引脚
PDIP14, SOIC14

TLC5620 特性

  • Four 8-Bit Voltage Output DACs
  • 5-V Single-Supply Operation
  • Serial Interface
  • High-Impedance Reference Inputs
  • Programmable 1 or 2 Times Output Range
  • Simultaneous Update Facility
  • Internal Power-On Reset
  • Low-Power Consumption
  • Half-Buffered Output

TLC5620 应用

  • Programmable Voltage Sources
  • Digitally Controlled Amplifiers/Attenuators
  • Mobile Communications
  • Automatic Test Equipment
  • Process Monitoring and Control
  • Signal Synthesis
