STM32L152VB

订购信息

型号 封装 在线定购
STM32L152VBT6(查看) LQFP100

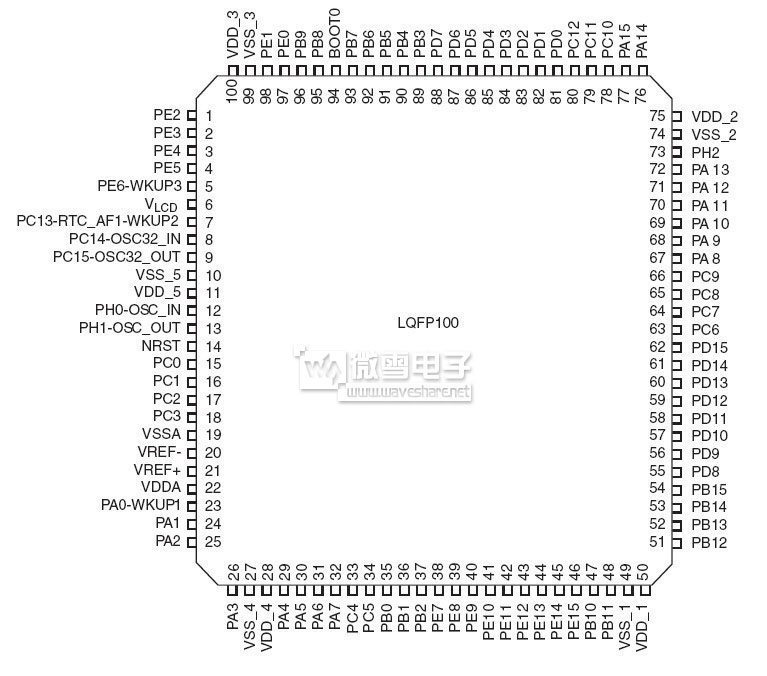

引脚布局

(点击图片看大图)
技术资料—— STM32L152VB PDF技术资料
STM32L152VB 参数
STM32L152VB 存储器
程序FLASH (kB) 128
RAM (kB) 16
STM32L152VB 性能参数
工作频率 (MHz) 32
16-bit 定时器 6
32-bit 定时器 -
A/D 转换器 1x12-bit
D/A 转换器 2x12-bit
通信接口 2xSPI;2xI2C;
3xUSART;1xUSB
I/Os 82
电压 (V) 1.65 to 3.6
STM32L152VB 封装与引脚
LQFP100

STM32L152VB 概述

The STM32L152VB family incorporates the connectivity power of the universal serial bus (USB) with the high-performance ARM Cortex™-M3 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (Flash memory up to 128 Kbytes and RAM up to 16 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

All the STM32L152VB devices offer a 12-bit ADC, 2 DACs and 2 ultralow power comparators, six general-purpose 16-bit timers and two basic timers, which can be used as time bases. Moreover, the STM32L15xxx devices contain standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs and a USB. They also include a real-time clock and a set of backup registers that remain powered in Standby mode. Finally, the integrated LCD controller has a built-in LCD voltage generator that allows you to drive up to 8 multiplexed LCDs with contrast independent of the supply voltage.

The STM32L152VB family operates from a 1.8 to 3.6 V power supply (down to 1.65 V at power down) with BOR and from a 1.65 to 3.6 V power supply without BOR option. It is available in the -40 to +85 °C temperature range. A comprehensive set of power-saving modes allows the design of low-power applications.

STM32L152VB 性能

  • Operating conditions
    • Operating power supply range: 1.65 V to 3.6 V (without BOR) or 1.8 V to 3.6 V (with BOR option)
    • Temperature range: –40 to 85 °C
  • Low power features
    • 4 modes: Sleep, Low-power run (9 μA at 32 kHz), Low-power sleep (4.4 μA),Stop with RTC (1.45 μA), Stop (570 nA), Standby (300 nA)
    • Dynamic core voltage scaling down to 233 μA/MHz
    • Ultralow leakage per I/O: 50 nA
    • Fast wakeup from Stop: 8 μs
    • Three wakeup pins
  • Core: ARM 32-bit Cortex™-M3 CPU
    • 32 MHz maximum frequency,33.3 DMIPS peak (Dhrystone 2.1)
    • Memory protection unit
  • Reset and supply management
    • Low power, ultrasafe BOR (brownout reset) with 5 selectable thresholds
    • Ultralow power POR/PDR
    • Programmable voltage detector (PVD)
  • Clock management
    • 1 to 24 MHz crystal oscillator
    • 32 kHz oscillator for RTC with calibration
    • Internal 16 MHz factory-trimmed RC
    • Internal 37 kHz low consumption RC
    • Internal multispeed low power RC, 65 kHz to 4.2 MHz with consumption down to 1.5 μA
    • PLL for CPU clock and USB (48 MHz)
  • Low power calendar RTC
    • Alarm, periodic wakeup from Stop/Standby
  • Memories
    • Up to 128 Kbyte of Flash memory with ECC
    • 4 Kbyte of data EEPROM with ECC
    • Up to 16 Kbyte of RAM
  • Up to 83 fast I/Os (73 of which are 5 V-tolerant) all mappable on 16 external interrupt vectors
  • Development support
    • Serial wire debug, JTAG and trace
  • DMA: 7-channel DMA controller, supporting timers, ADC, SPIs, I2Cs and USARTs
  • LCD 8 × 40 or 4 × 44 with step-up converter
  • 12-bit ADC up to 1 Msps/24 channels
    • Temperature sensor and internal voltage reference
    • Operates down to 1.8 V
  • 2 × 12-bit DACs with output buffers
  • 2 ultralow power comparators
    • Window mode and wakeup capability
  • 10 timers
    • 6 × 16-bit general-purpose timers, each with up to 4 IC/OC/PWM channels
    • 2 × 16-bit basic timers
    • 2 × watchdog timers (independent and window)
  • Up to 8 communication interfaces
    • Up to 2 × I2C interfaces (SMBus/PMBus)
    • Up to 3 × USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
    • Up to 2 × SPIs (16 Mbit/s)
    • USB 2.0 full speed interface
  • CRC calculation unit, 96-bit unique ID
