| STM32F417ZG 存储器 | |
|---|---|
| 程序FLASH (kB) | 1024 |
| RAM (kB) | 192 |
| STM32F417ZG 性能参数 | |
| 工作频率 (MHz) | 168 |
| 16-bit 定时器 (IC/OC/PWM) |
12 (24/24/30) |
| 32-bit 定时器 (IC/OC/PWM) |
2 (8/8/8) |
| A/D 转换器 | 3x12-bit |
| D/A 转换器 | 2x12-bit |
| 通信接口 | 3xSPI;2xI2S;2xI2C; 3xUSART;/3xUART 2xUSB OTG FS/HS; 2xCAN;1xSDIO; Ethernet MAC10/100 |
| I/Os | 114 |
| 电压 (V) | 1.8 to 3.6 |

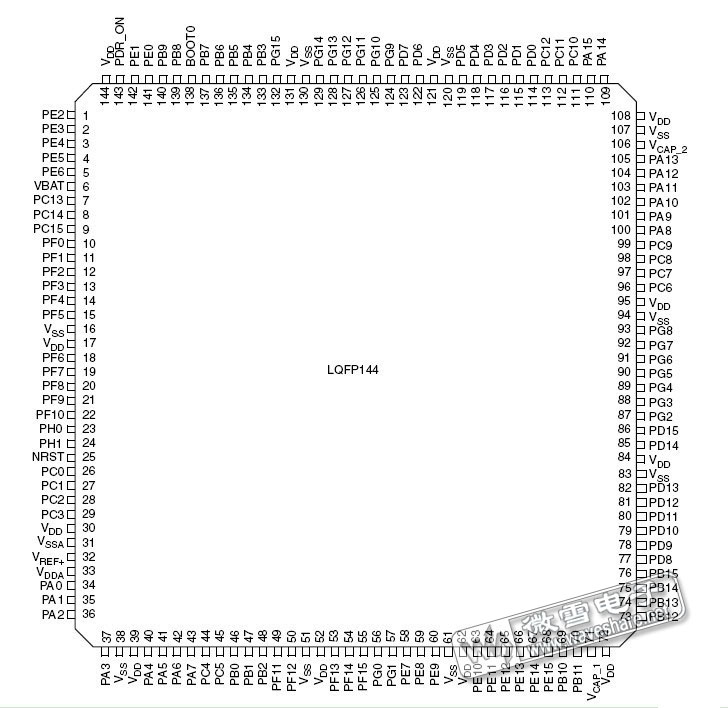

| STM32F417ZG 封装与引脚 | |
| LQFP144 | |
The STM32F417ZG family is based on the high-performance ARM®Cortex™-M4F 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4F core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F417ZG family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
All the STM32F417ZG devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true number random generator (RNG), and a cryptographic acceleration cell. They also feature standard and advanced communication interfaces.
