REF192

订购信息

型号 封装 在线定购
REF192FSZ(查看) SOIC8
REF192GSZ(查看) SOIC8

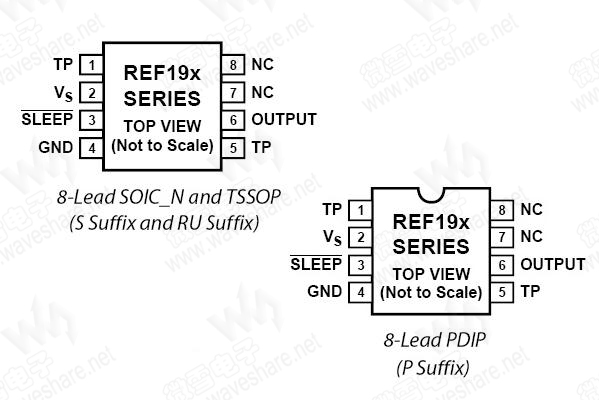

引脚布局

(点击图片看大图)
技术资料—— REF192 PDF技术资料

REF192 概述

The REF192 precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy.

The REF192 references is specified over the extended industrial temperature range (−40°C to +85°C) with typical performance specifications over −40°C to +125°C for applications, such as automotive.

REF192 参数
REF192 基本参数
Vout   2.5 V
工作电压   +2.6 to +15 V
REF192 其他特性
初始精度   0.08%
基准输出电流   30 mA
REF192 封装与引脚
SOIC8, PDIP8, TSSOP8

REF192 特性

  • Initial Accuracy: ±2 mV Max
  • Temperature Coefficient: 5 ppm/°C Max
  • Low Supply Current: 45 µA Max
  • Sleep Mode: 15 µA Max
  • Low Dropout Voltage
  • Load Regulation: 4 ppm/mA
  • Line Regulation: 4 ppm/V
  • High Output Current: 30 mA
  • Short-Circuit Protection

REF192 应用

  • Portable instruments
  • ADCs and DACs
  • Smart sensors
  • Solar powered applications
  • Loop-current-powered instruments
