PICkit3

主要参数
型号 PICkit3
规格
品牌 Microchip
备注
价格表
对应数量 @1set @2set @3set @4set
税前 368 357 350 346
含5%普税 386.4 374.85 367.5 363.3
含17%增税 430.56 417.69 409.5 404.82
版权所有,侵权必究。未经许可,不得用于商业用途。

产品简介

本产品是Microchip公司进口的原装PICkit3,适用于PIC和dsPIC系列单片机的仿真调试、在线和脱机烧录,具有速度快、易操作等优点。

【产品特性】

  • USB2.0全速(12Mbit/s)
  • 内建过压过流保护,PGD/PGC的保护强于PICkit 2
  • 可进行固件升级,以便支持后续新推出的软件和PIC芯片
  • 支持更宽的工作电压(2.0-6.0V)
  • 带指示LED(电源、活动和状态),方便分析下载器的工作情况
  • 可读写单片机的程序存储器和数据存储器
  • 可擦除所有存储器类型(EEPROM、 ID、配置和程序)并带有校验功能
  • 支持全速运行、单步调试、断点调试等各种调试方法
  • 断点处冻结外设
  • 内置512K byte的FLASH可用于脱机下载
注意:PICkit3适合用于产品开发的调试下载,不能作为量产下载器用。

【支持的软件】

  • 直接支持Microchip官方IDE(集成开发环境软件):MPLAB、MPLAB X IDE等

【支持的器件】

  • 支持Microchip的PIC10/12/16/18/24/32、dsPIC30/dsPIC33等几乎全系列PIC的FLASH单片机芯片进行在线编程和调试
  • 支持Microchip的KEELOQ HCS系列芯片、MCP250xx CAN系列芯片、EEPROM存储器芯片进行编程

至2011.11.01,支持以下型号:(以下信息对应的是MPLAB IDE v8.76)

ICSP PIC10F系列
PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222
PIC12F系列
PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12HV609, PIC12F615, PIC12FHV615PIC12F629, PIC12F635, PIC12F675, PIC12F683
PIC16F系列
PIC16F505,PIC16F506,PIC16F526,PIC16F54,PIC16F57,PIC16F59,PIC16F610,PIC16FHV610,PIC16F616, PIC16FHV616PIC16F627, PIC16F628, PIC16F627A, PIC16F628A, PIC16F648A, PIC16F630, PIC16F631, PIC16F636,PIC16F639,PIC16F676,PIC16F677,PIC16F684,PIC16F685,PIC16F687,PIC16F688,PIC16F689, PIC16F690,PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F722, PIC16F723, PIC16F724, PIC16F726, PIC16F727, PIC16F716,PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F785, PIC16FHV785,PIC16F84A,PIC16F87,PIC16F88,PIC16F818,PIC16F819,PIC16F870,PIC16F871,PIC16F872, PIC16F873, PIC16F874,PIC16F876, PIC16F877, PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A, PIC16F882, PIC16F883, PIC16F884, PIC16F886, PIC16F887,PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946, PIC16F1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16F1938, PIC16F1939, PIC16LF1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16LF1938, PIC16LF1939
PIC18F系列

PIC18F242, PIC18F252, PIC18F442, PIC18F452,PIC18F248, PIC18F258, PIC18F448, PIC18F458
PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320,PIC18F1230, PIC18F1330,PIC18F2221, PIC18F2321
PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2431,PIC18F2423,PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480,PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523,PIC18F2525,PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585,PIC18F2610, PIC18F2620, PIC18F2680,PIC18F2682, PIC18F2685,PIC18F4220, PIC18F4221,PIC18F4320, PIC18F4321, PIC18F4331,PIC18F4410, PIC18F4420, PIC18F4423,PIC18F4431, PIC18F4450, PIC18F4455,PIC18F4458, PIC18F4480,PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523
PIC18F4525, PIC18F4550, PIC18F4553, PIC18F4580,PIC18F4585,PIC18F4610, PIC18F4620, PIC18F4680
PIC18F4682, PIC18F4685,PIC18F6310, PIC18F6390, PIC18F6393,PIC18F6410, PIC18F6490, PIC18F6493
PIC18F6520, PIC18F6525, PIC18F6527, PIC18F6585,PIC18F6620, PIC18F6621, PIC18F6622, PIC18F6627
PIC18F6628, PIC18F6680,PIC18F6720, PIC18F6722, PIC18F6723PIC18F8310, PIC18F8390, PIC18F8393
PIC18F8410, PIC18F8490, PIC18F8493,PIC18F8520, PIC18F8525, PIC18F8527, PIC18F8585,PIC18F8621, PIC18F8620,PIC18F8622,PIC18F8627,PIC18F8628,PIC18F8680,PIC18F8720,PIC18F8722,PIC18F8723,PIC18F24J10, F25J10, F44J10, F45J10,PIC18LF24J10, LF25J10, LF44J10, LF45J10,PIC18F24J11, F25J11, F44J11, F45J11
PIC18LF24J11, LF25J11, LF44J11, LF45J11,PIC18F26J11, F46J11,PIC18LF26J11, LF46J11,PIC18F24J50, F25J50, F44J50, F45J50,PIC18LF24J50, LF25J50, LF44J50, LF45J50,PIC18F26J50, F46J50,PIC18LF26J50, LF46J50
PIC18F63J11, 63J90, 64J11, 64J90PIC18F65J10, 65J11, 65J15PIC18F65J50, 65J90PIC18F66J10, 66J11, 66J15, 66J16,PIC18F66J50, 66J55, 66J60, 66J65,PIC18F66J90,PIC18F67J10, 67J11, 67J50, 67J60,PIC18F67J90,PIC18F83J11, 83J90, 84J11, 84J90,PIC18F85J10, 85J11, 85J15, 85J50,PIC18F85J90,PIC18F86J10, 86J11, 86J15, 86J16,PIC18F86J50, 86J55, 86J60, 86J65,PIC18F86J90,PIC18F87J10, 87J11, 87J50, 87J60,PIC18F86J90,PIC18F96J60, 96J65,PIC18F97J60,
PIC18F13K22, LF13K22, F14K22, LF14K22PIC18F13K50,14K50,PIC18F23K20,24K20,25K20,26K20PIC18F43K20, 44K20, 45K20, 46K20

PIC24F系列

PIC24F04KA200, 04KA201,PIC24F08KA101, 08KA102,PIC24F16KA101, 16KA102,PIC24FJ16GA002, 16GA004,PIC24FJ32GA002, 32GA004,PIC24FJ32GA102, 32GA104,PIC24FJ32GB002, 32GB004,PIC24FJ48GA002, 48GA004,PIC24FJ64GA002, 64GA004,PIC24FJ64GA102, 64GA104,PIC24FJ64GB002, 64GB004,PIC24FJ64GA006, 64GA008, 64GA010,PIC24FJ64GB106, 64GB108, 64GB110,PIC24FJ96GA006, 96GA008, 96GA010,PIC24FJ128GA006, 128GA008, 128GA010,PIC24FJ128GA106, 128GA108, 128GA110,PIC24FJ128GB106, 128GB108, 128GB110,PIC24FJ192GA106, 192GA108, 192GA110,PIC24FJ192GB106, 192GB108, 192GB110,PIC24FJ256GA106, 256GA108, 256GA110,PIC24FJ256GB106, 256GB108, 256GB110
,PIC24HJ12GP201, 12GP202,PIC24HJ16GP304,PIC24HJ32GP202, 32GP204,PIC24HJ32GP302, 32GP304
,PIC24HJ64GP202, 64GP204,PIC24HJ64GP206, 64GP210, 64GP506,PIC24HJ64GP502, 64GP504, 64GP510
,PIC24HJ128GP202, 128GP204,PIC24HJ128GP206, 128GP210, 128GP306,PIC24HJ128GP310,PIC24HJ128GP502, 128GP504,PIC24HJ128GP506, 128GP510,PIC24HJ256GP206, 256GP210, 256GP610

dsPIC30系列
dsPIC30F1010,dsPIC30F2010, 2011, 2012,dsPIC30F2020, 2023,dsPIC30F 3010, 3011, 3012
dsPIC30F3013, 3014,dsPIC30F4011, 4012, 4013,dsPIC30F5011, 5013, 5015, 5016,dsPIC30F6010A, 6011A, 6012A
dsPIC39系列
dsPIC39F6013A, 6014A, 6015
dsPIC33系列

dsPIC33FJ12GP201, 12GP202,dsPIC33FJ16GP304,dsPIC33FJ32GP202, 32GP204,dsPIC33FJ32GP302, 32GP304
dsPIC33FJ64GP202, 64GP204,dsPIC33FJ64GP206, 64GP306, 64GP310,dsPIC33FJ64GP706, 64GP708, 64GP710
dsPIC33FJ64GP802, 64GP804,dsPIC33FJ128GP202, 128GP204,dsPIC33FJ128GP206, 128GP306, 128GP310,

dsPIC33FJ128GP706, 128GP708, 128GP710,dsPIC33FJ128GP802, 128GP804,dsPIC33FJ256GP506, 256GP510, 256GP710
dsPIC33FJ06GS101, 06GS102, 06GS202,dsPIC33FJ16GS402, 16GS404,dsPIC33FJ16GS502, 16GS504

dsPIC33FJ12MC201, 12MC202,dsPIC33FJ16MC304,dsPIC33FJ32MC202, 32MC204,dsPIC33FJ32MC302, 32MC304
dsPIC33FJ64MC202, 64MC204,dsPIC33FJ64MC506, 64MC508, 64MC510,dsPIC33FJ64MC706, 64MC710,dsPIC33FJ64MC802, 64MC804,dsPIC33FJ128MC202, 128MC204
dsPIC33FJ128MC506, 128MC510,dsPIC33FJ128MC706, 128MC708, 128MC710
dsPIC33FJ128MC802, 128MC804,dsPIC33FJ256MC510, 256MC710

dsPIC32系列
PIC32MX320F032H, 320F064H,PIC32MX320F128H, 320F128L,PIC32MX340F128H, 340F128L,PIC32MX340F256H
PIC32MX340F512H,PIC32MX360F256L, 360F512L,PIC32MX420F032H,PIC32MX440F128L, 440F128H
PIC32MX440F256H,PIC32MX440F512H,PIC32MX460F256L, 460F512L
11 Series Serial EEPROM Devices系列
11LC/AA010,11LC/AA020,11LC/AA040,11LC/AA080,11LC/AA160
24 Series Serial EEPROM Devices系列
24LC/AA/C00,24LC/AA01B, 02B, 04B, 08B,24LC/AA16B, 32A,24LC/AA/FC64, 128, 256, 512,24LC/AA/FC1025
25 Series Serial EEPROM Devices系列
25LC/AA010A, 020A, 040A,25LC/AA080A, 080B, 160A, 160B,25LC/AA320A, 640A,25LC/AA128, 256, 512, 1024
93 Series Serial EEPROM Devices系列
25LC/AA/C46A, 46B, 46C,25LC/AA/C56A, 56B, 56C,25LC/AA/C66A, 66B, 66C,25LC/AA/C47A, 76B, 76C
,25LC/AA/C48A, 86B, 86C
MCP250xx CAN Devices系列
MCP25020, 25025,MCP25050, 25055

PICkit3图片

Raspberry Pi 2 Model B
PICkit3正侧视图
divider
Raspberry Pi 2 Model B
PICkit3背侧视图
divider
divider
Raspberry Pi 2 Model B

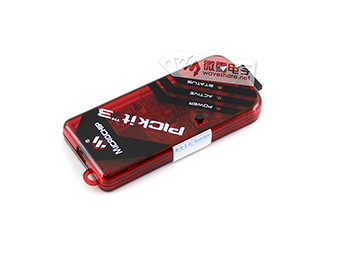

PICkit3正面图一
divider
Raspberry Pi 2 Model B
PICkit3正面图二
divider
divider
Raspberry Pi 2 Model B
PICkit3接线图
divider
Raspberry Pi 2 Model B
PICkit3连接图

请注意,连接时看左右方向,请勿插反,以免烧坏PICkit3下载器。

PICkit3连接目标板

通过PICkit3下载器连接"PIC目标板”和“PC”,建立完整的硬件开发环境,对目标芯片进行烧写、仿真:

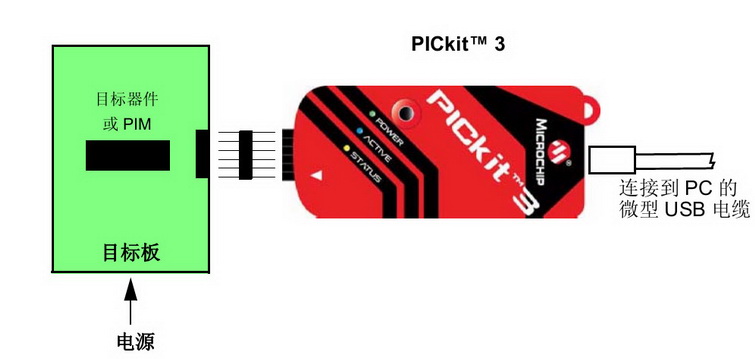

基本调试系统

PICkit3下载器通过ICSP接口连接至PIC目标板

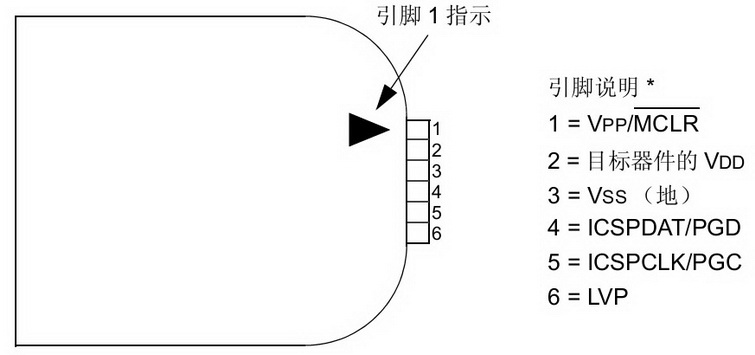

PICkit3的ICSP接口是如何定义的?

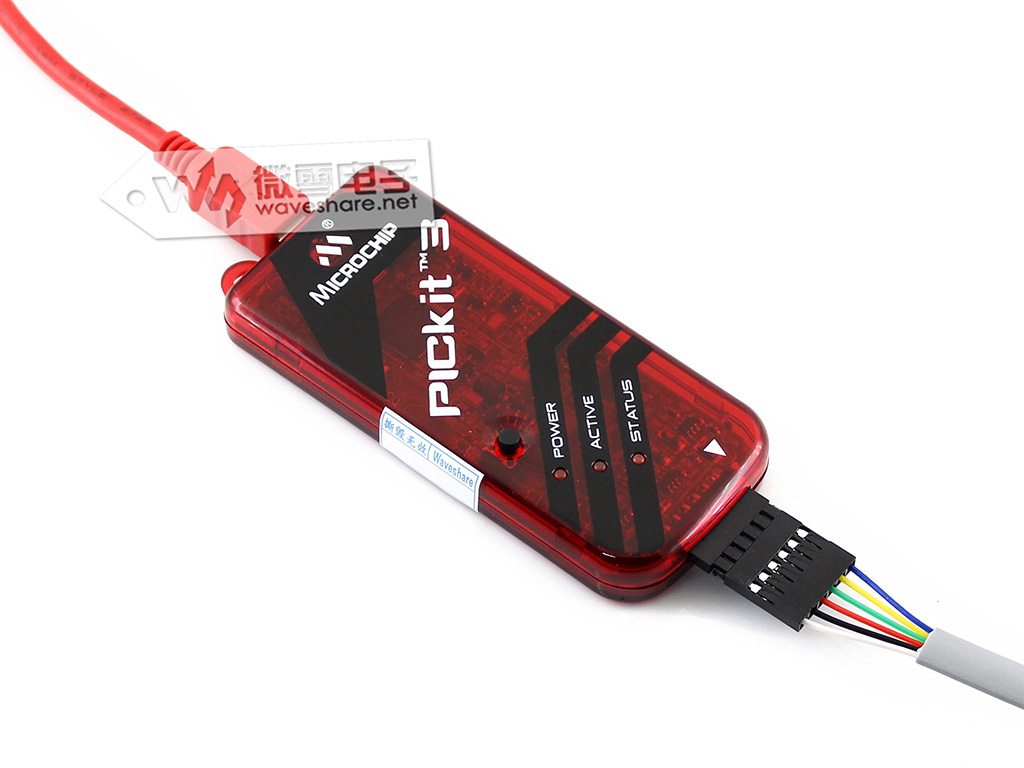

PICkit3下载器接入ICSP散头线

由于PIC的ICSP接口只有一排6PIN连接口,所以PICkit3连接至PIC目标板时需要注意连接的左右方向,如下所示:

PICkit3的LED指示灯的状态

指示灯具有如下含义:

  • Power:
    • 绿色,在开始上电或与目标板连接时点亮。
  • Active:
    • 蓝色,在PICkit 3 已建立与PC 的通信或发送/ 接收命令时点亮。
  • Status:
    • 绿色,在调试器正常工作(待机)时点亮。
    • 黄色,操作忙时点亮。
    • 红色,调试器失败时点亮。

配置清单

  1. PICkit3主机(含USB线) x1
  2. 6-PIN RJ11连接线(微雪赠送) x1
  3. 6-PIN HEADER转 RJ11(微雪赠送) x1
  4. 6-PIN ICSP下载线(微雪赠送) x1

请注意,新版本的原装PICkit3不再配送光盘,若需相关软件资料可到Waveshare WikiMicrochip下载。
