PIC16F747

芯片信息

型号 封装 在线定购
PIC16F747-I/P(查看) PDIP40
PIC16F747-I/PT(查看) TQFP44

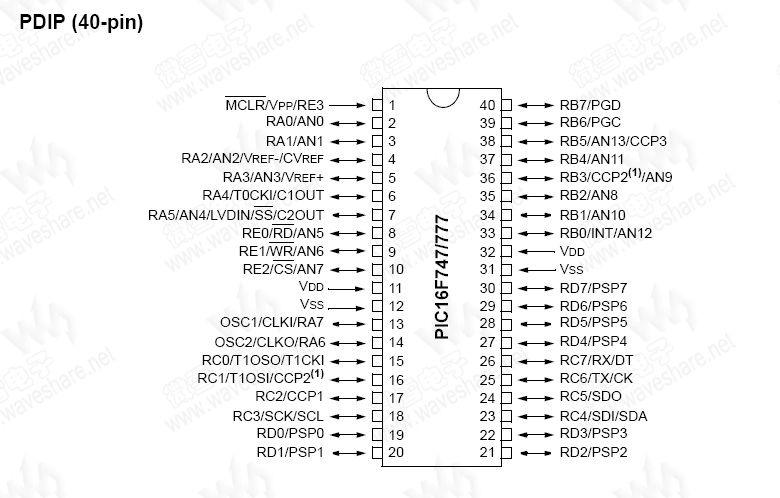

引脚布局

(点击图片看大图)
技术资料—— PIC16F747 PDF技术资料

PIC16F747 概述

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 word instructions) CMOS FLASH-based 8-bit microcontroller PIC16F747 packs Microchip's powerful PIC® architecture into 40- or 44- pin packages and is up compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F747 features 14 channels of 10-bit Analog-to-Digital (A/D) converter, 3 timers, 3 Capture/Compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART), 2 comparators, internal RC oscillator and Advanced Low Power Oscillator controls. All of these features make the PIC16F747 ideal for applications including automotive, appliance, battery, RF, motor control and utility metering.

PIC16F747 参数
PIC16F747 存储器
Flash (KB)   7
RAM (Bytes)   368
PIC16F747 其他参数
程序存储器类型   Flash
CPU速率 (MIPS)   5
数字通信模块   1-A/E/USART
1-MSSP(SPI/I2C)
捕捉/比较/PWM 模块   3 CCP
定时器   2 x 8-bit
1 x 16-bit
ADC   14 ch, 10-bit
比较器   2
工作电压 (V)   2 to 5.5
PIC16F747 封装与引脚
PDIP40, QFN44, TQFP44

PIC16F747 特性

  • 3 PWM 10-bit
  • Programmable Low Current LVD
  • Three Power Managed Modes
  • Multiple Oscillator Options
  • Fail-Safe Clock Monitor
  • Two-Speed Start-up
  • and Real-Time Clock (RTC)
