LPC2131

订购信息

型号 封装 在线定购
LPC2131FBD64(查看) LQFP64

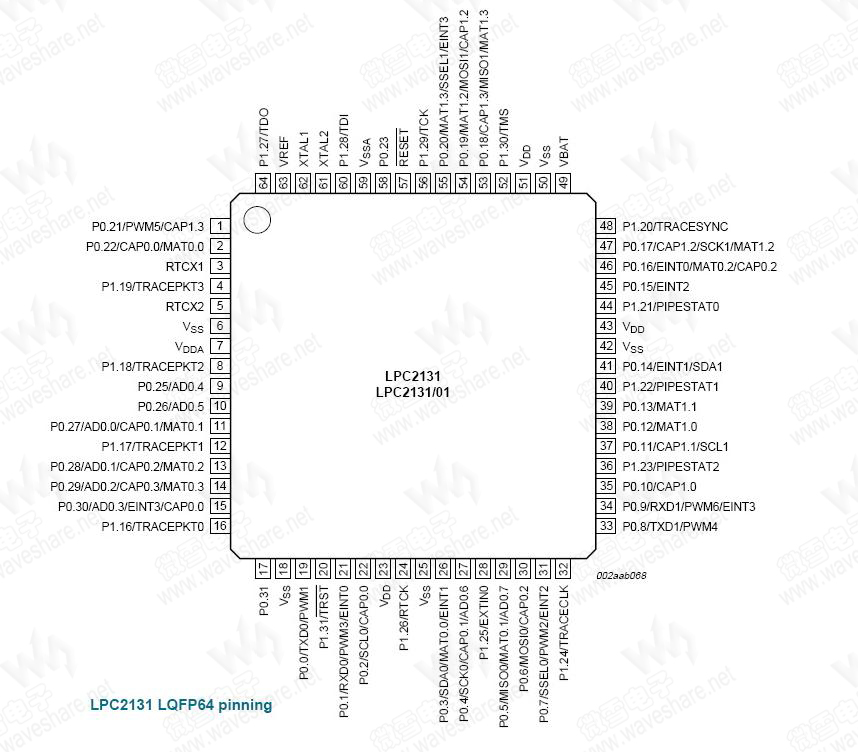

引脚布局

(点击图片看大图)
技术资料—— LPC2131 PDF技术资料

LPC2131 概述

The LPC2131 microcontrollers are based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combine the microcontroller with 32 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 pct with minimal performance penalty.

Due to their tiny size and low power consumption, the LPC2131 microcontrollers are ideal for applications where miniaturization is a key requirement, such as access control and point-of-sale. With a wide range of serial communications interfaces and on-chip SRAM of 8 kB, the LPC2131 devices are very well suited for communication gateways and protocol converters, soft modems, voice recognition and low-end imaging, providing both large buffer size and high processing power. Various 32-bit timers, single or dual 10-bit 8-channel ADC(s), 10-bit DAC, PWM channels and 47 GPIO lines with up to nine edge or level sensitive external interrupt pins make the LPC2131 microcontrollers particularly suitable for industrial control and medical systems.

LPC2131 参数
LPC2131 存储器
FLASH (kB) 32
RAM (kB) 8
LPC2131 性能参数
fmax (MHz) 60
I/Opins 47
UART 2
I²C 2
SPI 1
SSP 1
ADC 8
DAC -
定时器 3
PWM 6
I/O 电压 (V) 3.3
CPU 电压 (V) 3.3
LPC2131 封装与引脚
LQFP64
