ADS901

订购信息

型号 封装 在线定购
ADS901E(查看) SSOP28

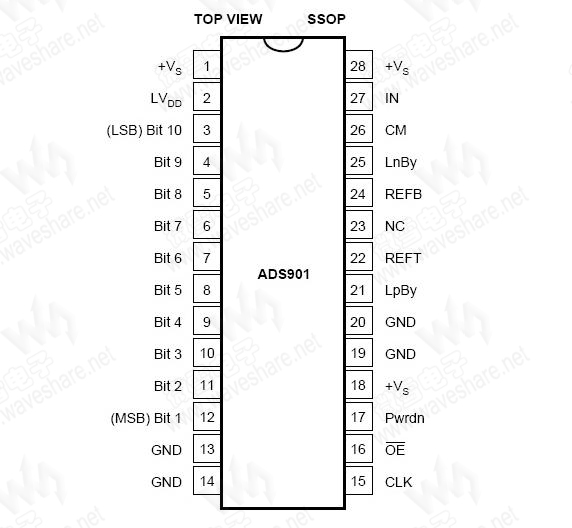

引脚布局

(点击图片看大图)
技术资料—— ADS901 PDF技术资料

ADS901 概述

The ADS901 is a high-speed pipelined analog-to-digital converter that operates from a +3V power supply. This complete converter includes a wide bandwidth track/hold and a 10-bit quantizer. The full scale input range is set by external references.

The ADS901 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for telecommunications, video and test instrumentation applications. The ADS901 is available in an SSOP-28 package.

ADS901 参数
ADS901 基本参数
分辨率(Bits)   10
采样速率(max)   20 MSPS
ADS901 其他特性
工作电压(V)   2.7~3.7
输入通道数   1
ADS901 封装与引脚
SSOP28

ADS901 特性

  • LOW POWER: 48mW at +3V
  • SUPPLY RANGE: +2.7V to +3.7V
  • ADJUSTABLE FULL SCALE RANGE WITH EXTERNAL REFERENCES
  • NO MISSING CODES
  • WIDEBAND TRACK/HOLD: 350MHz
  • POWER DOWN: 15mW
  • SSOP-28 PACKAGE

ADS901 应用

  • BATTERY POWERED EQUIPMENT
  • CAMCORDERS
  • DIGITAL CAMERAS
  • COMPUTER SCANNERS
  • COMMUNICATIONS
