ADS8344

订购信息

型号 封装 在线定购
ADS8344E(查看) SSOP / QSOP20

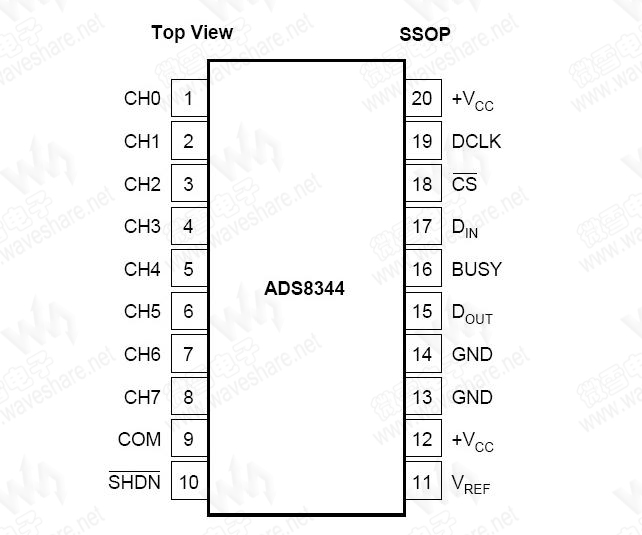

引脚布局

(点击图片看大图)
技术资料—— ADS8344 PDF技术资料

ADS8344 概述

The ADS8344 is an 8-channel, 16-bit, sampling Analog-to-Digital (A/D) converter with a synchronous serial interface. Typical power dissipation is 10mW at a 100kHz throughput rate and a +5V supply. The ADS8344 includes a shutdown mode that reduces power dissipation to under 15µW. The ADS8344 is tested down to 2.7V operation.

Low power, high speed, and an on-board multiplexer make the ADS8344 ideal for battery-operated systems such as personal digital assistants, portable multi-channel data loggers, and measurement equipment. The serial interface also provides low-cost isolation for remote data acquisition. The ADS8344 is available in a QSOP-20 or SSOP-20 package and is ensured over the –40°C to +85°C temperature range.

ADS8344 参数
ADS8344 基本参数
分辨率(Bits)   16
采样速率(max)   250 kSPS
ADS8344 其他特性
工作电压(V)   4.75~5.25
输入通道数   4
ADS8344 封装与引脚
SSOP20, SSOP/QSOP20

ADS8344 特性

  • PIN FOR PIN WITH ADS7844
  • SINGLE SUPPLY: 2.7V to 5V
  • 8-CHANNEL SINGLE-ENDED OR 4-CHANNEL DIFFERENTIAL INPUT
  • UP TO 100kHz CONVERSION RATE
  • 84dB SINAD
  • SERIAL INTERFACE
  • QSOP-20 AND SSOP-20 PACKAGES

ADS8344 应用

  • DATA ACQUISITION
  • TEST AND MEASUREMENT EQUIPMENT
  • INDUSTRIAL PROCESS CONTROL
  • PERSONAL DIGITAL ASSISTANTS
  • BATTERY-POWERED SYSTEMS
