ADC0838

芯片信息

型号 封装 在线定购
ADC0838CCN(查看) MDIP20
ADC0838CCWM(查看) SOIC20

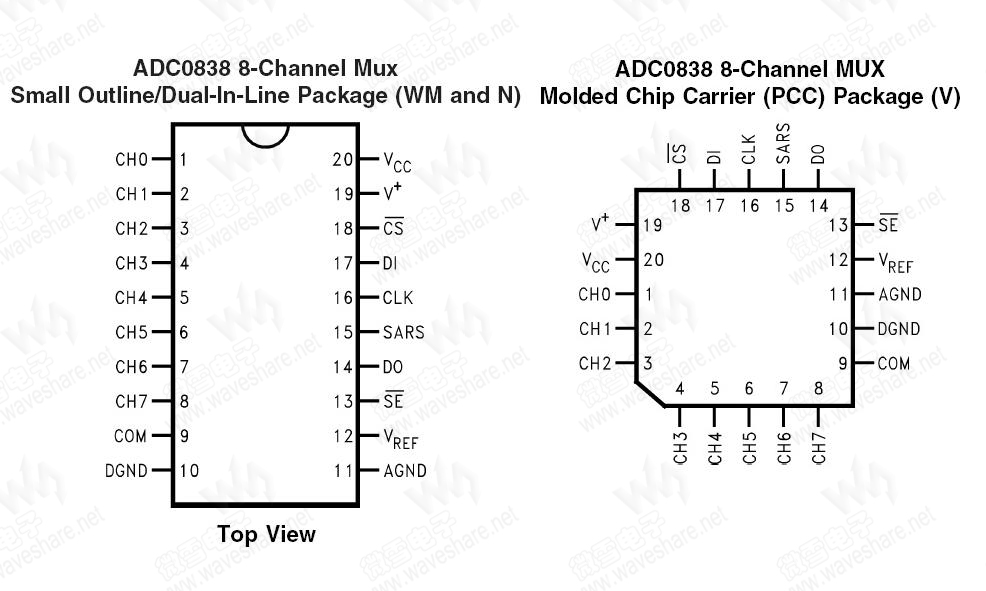

引脚布局

(点击图片看大图)
技术资料—— ADC0838 PDF技术资料

ADC0838 概述

The ADC0838 series are 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with up to 8 channels. The serial I/O is configured to comply with the NSC MICROWIRE™ serial data exchange standard for easy interface to the COPS™ family of processors, and can interface with standard shift registers or µPs.

ADC0838 参数
ADC0838 基本参数
分辨率(Bits)   8
采样率   31 KSPS
ADC0838 其他特性
工作电压(V)   4.5-6.3
输入通道数   8
ADC0838 封装与引脚
SOIC20, MDIP20

ADC0838 特性

  • NSC MICROWIRE compatible-direct interface to COPS family processors
  • Easy interface to all microprocessors, or operates "stand-alone"
  • Operates ratiometrically or with 5 VDC voltage reference
  • No zero or full-scale adjust required
  • 2-, 4- or 8-channel multiplexer options with address logic
  • Shunt regulator allows operation with high voltage supplies
  • 0V to 5V input range with single 5V power supply
  • Remote operation with serial digital data link
  • TTL/MOS input/output compatible
  • 0.3" standard width, 8-, 14- or 20-pin DIP package
  • 20 Pin Molded Chip Carrier Package (ADC0838 only)
  • Surface-Mount Package
