AD977A 概述

The AD977、AD977A is a high speed, low power 16-bit A/D converter that operates from a single 5 V supply. The AD977A has a throughput rate of 200 kSPS whereas the AD977 has a throughput rate of 100 kSPS. Each part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference, and a high speed serial interface. The ADC is factory calibrated to minimize all linearity errors. The AD977、AD977A is specified for full scale bipolar input ranges of ±10 V, ±5 V and ±3.3 V, and unipolar ranges of 0 V to 10 V, 0 V to 5 V and 0 V to 4 V.

AD977A 特性

• Fast 16-Bit ADC
  100 kSPS Throughput Rate
• Single 5 V Supply Operation
• Power Dissipation 100 mW Max
• Power-Down Mode 50 µW
• Choice of External or Internal 2.5 V Reference
• High Speed Serial Interface
• Input Ranges:
  Unipolar; 0 V–10 V, 0 V–5 V
  and 0 V–4 V
  Bipolar; ±10 V, ±5 V and ±3.3 V
• On-Chip Clock

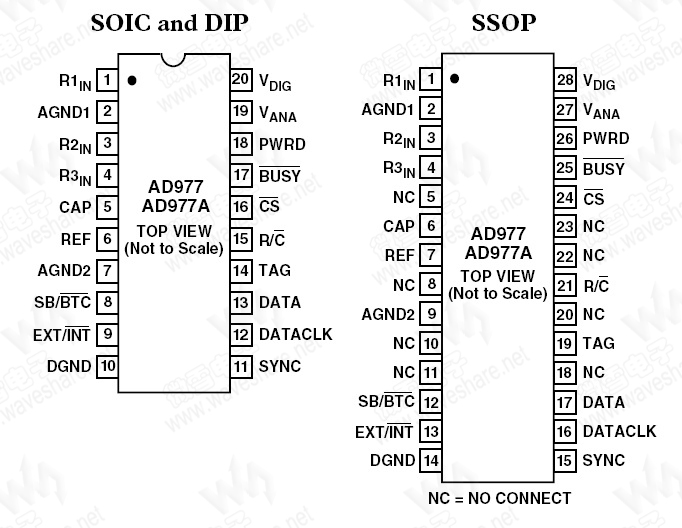

• 20-Lead Skinny DIP or SOIC Package
• 28-Lead Skinny SSOP Package
